Liner damage from over‑sized grinding balls is one of the most avoidable yet costly problems in comminution circuits. In this guide, we combine field experience, industry data and proven engineering practice to show how operators can reduce liner wear, cut downtime and lower total grinding cost while maintaining product size targets. [ballmillssupplier]
At the heart of the solution is a strategic partnership with a trusted global manufacturer of grinding media such as SHANDONG ALLSTAR GRINDING BALL CO., LTD., which specializes in forged and cast grinding balls, grinding rods and grinding segments for mining, cement and power industries, and provides OEM services for international brand owners, wholesalers and producers. [steelgrindingball]
When grinding balls are larger than the optimal size for a given mill and ore, each impact carries disproportionate kinetic energy. This translates into:
- Higher peak stresses on lifter bars and shell liners
- Faster crack initiation and propagation in liner material
- More frequent liner bolt failures and localized shell damage [jxscmachine]

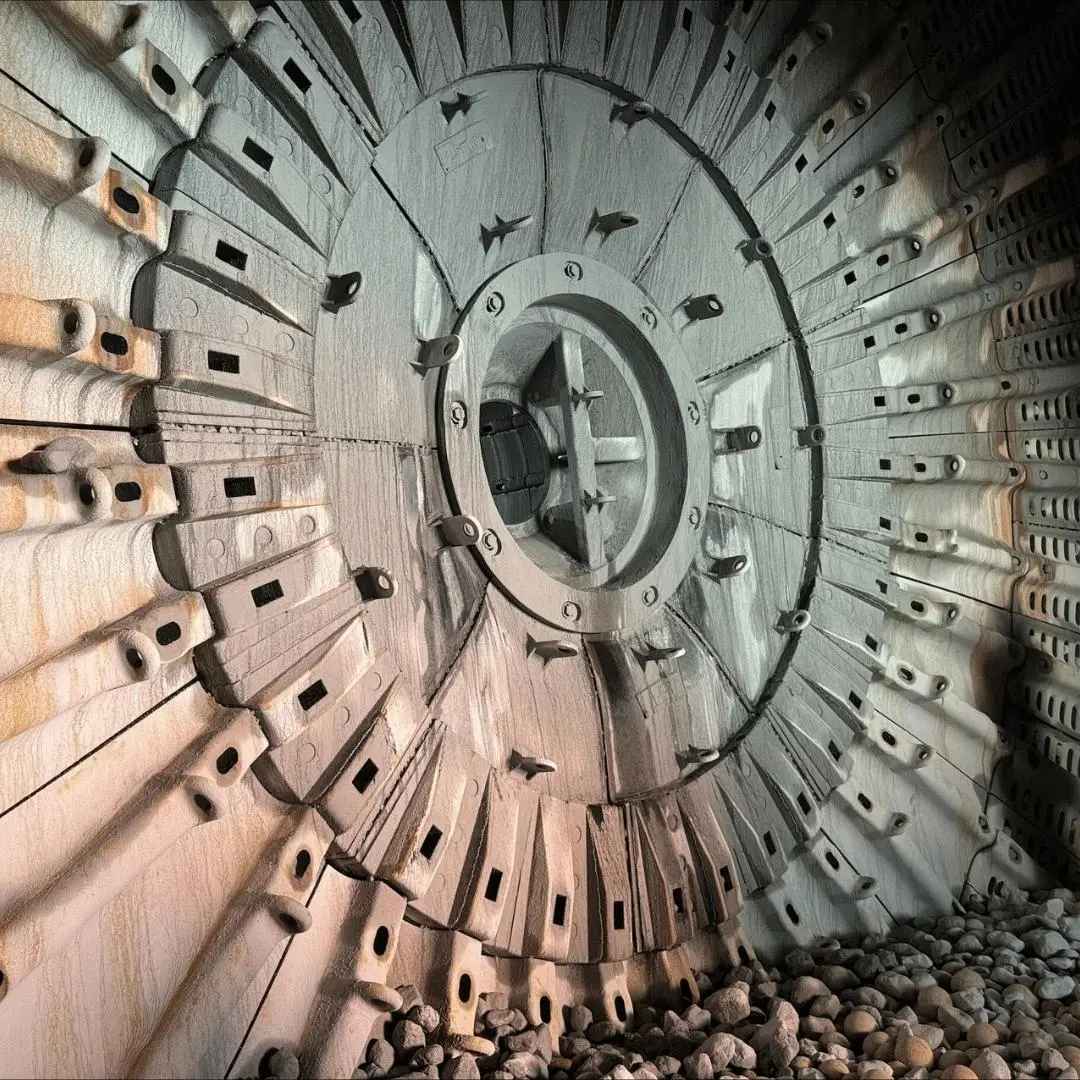

In SAG and ball mills, liners are designed to lift and cascade the charge at a specific energy level. Over‑sized balls break this balance, turning liners into impact targets rather than controlled lifters. [ballmillssupplier]
Most mills rely on a graded ball charge (large–medium–small) and, in two‑compartment mills, classifying liners that naturally segregate balls by size. Adding or retaining too many large balls:
- Overloads the first compartment and the inlet liners
- Reduces the effectiveness of classifying liners, leading to "ball stacking" near the inlet
- Increases metal‑to‑metal impacts, accelerating both liner and ball wear [epic-powder]
A common rule of thumb is that the hardness ratio of liner to grinding ball should be around 1 : 0.8. When oversized, harder balls strike relatively softer liners, the liner becomes the sacrificial component and wears out prematurely. [lzzgchina]
SHANDONG ALLSTAR GRINDING BALL CO., LTD. is a reliable global manufacturer producing:
- Forged steel grinding balls – high impact toughness, low breakage rate, uniform hardness from surface to core
- Cast grinding balls (low/medium/high chrome) – customizable chemistry for abrasive or corrosive environments
- Grinding rods and grinding segments for rod mills and specific mill zones. [zenithcrusher]
For mills suffering from liner damage due to over‑sized balls, the company can:
- Redesign the ball size distribution based on your mill dimensions, feed size and product size target
- Provide optimized ball sizes (e.g., reducing max ball diameter, adjusting proportions of large/medium/small) to lower impact energy on liners while maintaining throughput. [ballmillssupplier]
As an OEM partner for international brand owners, wholesalers and producers, SHANDONG ALLSTAR GRINDING BALL CO., LTD. can:
- Produce grinding media under your brand name with your exact specifications
- Deliver custom heat‑treatment curves and alloy compositions matched to your ore type and liner material
- Offer technical consulting on charge design, ball addition strategy and liner‑media matching. [gaoxincn]
Inconsistent ball quality (hardness variation, internal defects, ovality) can cause erratic impacts and localized liner damage. SHANDONG ALLSTAR implements:
- Strict hardness testing (surface and core) for each batch
- Visual and dimensional inspection to minimize out‑of‑spec balls
- Traceable production records so you can track performance over time. [cn.hygrindingballs]
Before making changes, collect data:
1. Measure ball size distribution in the mill (sample charge, sieve analysis).
2. Record ball addition rate and current top ball size.
3. Compare with original design and liner manufacturer recommendations.
If the top ball size is significantly larger than recommended for your mill diameter and feed size, you likely have an over‑sized charge. [epic-powder]
Use a multi‑level distribution (e.g., 4–5 sizes) rather than 1–2 oversized sizes:
- Large balls: for coarse breakage, but limited to 30–40% of total charge.
- Medium balls: main grinding work, 30–40%.
- Small balls: surface refinement and better filling of voids, 20–30%.
Work with SHANDONG ALLSTAR to calculate the optimal proportions for your mill and ore. [cementindustrial]
With the new ball size distribution:
- Verify that liner hardness and ball hardness follow the ~1:0.8 ratio.
- Consider liner profile changes (lifter height, spacing) to better handle the revised charge energy.
- If you currently use high‑chrome cast liners in high‑impact zones, discuss with your liner supplier whether a composite or rubber‑steel hybrid could reduce impact stress. [hsferroalloy]
- Stop adding the largest balls temporarily if they are above the new target top size.
- Introduce smaller replacement balls gradually to shift the distribution.
- Monitor ball breakage rate and liner wear rate month by month to fine‑tune the strategy. [ballmillssupplier]
Plants that optimize ball size distribution and media–liner matching often see:
- 20–40% reduction in liner wear rate
- 10–25% longer liner life
- 5–15% improvement in specific power consumption due to better energy transfer. [hsferroalloy]
These improvements are especially pronounced in large‑diameter mills and high‑feed‑size operations, where over‑sized balls have the greatest impact energy. [stdaily]
Advanced plants now combine:
- Online power and vibration monitoring to detect abnormal impact patterns
- Discrete Element Method (DEM) modeling to simulate liner evolution and optimize lifter design. [sciencedirect]
Partnering with a manufacturer like SHANDONG ALLSTAR allows you to feed real media properties (hardness, density, breakage behavior) into such models, improving prediction accuracy and liner life planning.
If your mill is experiencing premature liner wear, frequent liner failures or high grinding costs, it's time to revisit your grinding media strategy.
Contact SHANDONG ALLSTAR GRINDING BALL CO., LTD. to:
- Get a free assessment of your current ball charge and liner wear pattern
- Receive a customized ball size distribution and media specification
- Start an OEM collaboration for branded grinding media tailored to your operation
Email: sales@steelgrindingball.com
Phone/WhatsApp: +86 13021742216
Address: Taitou Industrial Park, Guanzhuang Town, Zhangqiu District, Jinan City, Shandong Province, China. [steelgrindingball]
1. SHANDONG ALLSTAR GRINDING BALL CO., LTD. – Company and product information.
https://www.steelgrindingball.com/news-p6.html
2. Ball Mill Liner Replacement and Maintenance – ballmillssupplier.com
https://ballmillssupplier.com/ball-mill-faqs/ball-mill-liner-replacement/
3. Five Reasons and Solutions for the Rapid Wear of Ball Mill Liner – JXSC
https://www.jxscmachine.com/new/five-reasons-and-solutions-for-the-rapid-wear-of-ball-mill-liner/
4. Ball Mill Loading Ratio and Steel Ball Size Distribution – Epic Powder
https://www.epic-powder.com/ball-mill-loading-ratio-and-steel-ball-size-distribution/
5. Three Factors That Determine the Wear Life and Performance of Mill Liners – Metso
https://www.metso.com/globalassets/insights/ebooks/ebook-mill-liners-4491-01-2022-en-cns-lores.pdf
6. How to Extend Ball Mill Liner Lifespan – hsferroalloy.com
https://hsferroalloy.com/why-do-ball-mill-liners-wear-out-quickly-causes-solutions/
7. Cast Grinding Balls vs. Forged Grinding Balls – SA Materials
https://www.samaterials.com/blog/cast-grinding-balls-vs-forged-grinding-balls-making-the-right-choice.html
8. What Are Mill Liners? – ballmillssupplier.com
https://ballmillssupplier.com/ball-mill-faqs/what-are-mill-liners/
9. DEM Modelling of Liner Evolution and Its Influence – ScienceDirect
https://www.sciencedirect.com/science/article/abs/pii/S0892687510003535
- Unusually high liner wear rate compared to historical data
- Frequent liner bolt failures or cracks near lifters
- Increased mill noise and vibration during operation
- Drop in grinding efficiency despite stable power draw. [jxscmachine]
Compare your current top ball size with recommendations based on:
- Mill diameter
- Feed size (F80)
- Ore hardness
If your top ball is significantly larger than what design guidelines or liner media‑matching suggest, it is likely too large. [ballmillssupplier]
Yes. Many plants see 20–40% reduction in liner wear rate after rebalancing the ball charge and matching media to liner hardness, without major hardware changes. [hsferroalloy]
Forged balls typically have higher impact toughness and lower breakage rates, which can reduce irregular impacts and localized liner damage. In high‑impact SAG/ball mills, forged media are often preferred. [hxnewmaterial]
They can:
- Analyze your current grinding media and liner wear data
- Design an optimized ball size distribution and chemistry
- Provide OEM‑branded forged/cast balls, rods and segments tailored to your mill and ore
- Offer ongoing technical support and quality tracking. [gaoxincn]
