Exceptional work-hardening behavior increases surface hardness under impact
Superior toughness to resist fracture in heavy impact conditions
High abrasion resistance for prolonged wear life
Custom profiles available for optimized mill charge motion
Engineered to reduce downtime and maintenance frequency
Item | Specification |
Material | High Manganese Steel (e.g., ZGMn13, ZGMn18) |
Hardness | Work-hardened surface hardness significantly higher than initial |
Plate Thickness | Customizable (typically 10mm – 100mm+) |
Profile | Custom liner geometry based on mill type and duty |
Standard | Manufactured per ISO 9001 quality system |
Tailored configurations based on mill size, grinding media size, and application conditions.

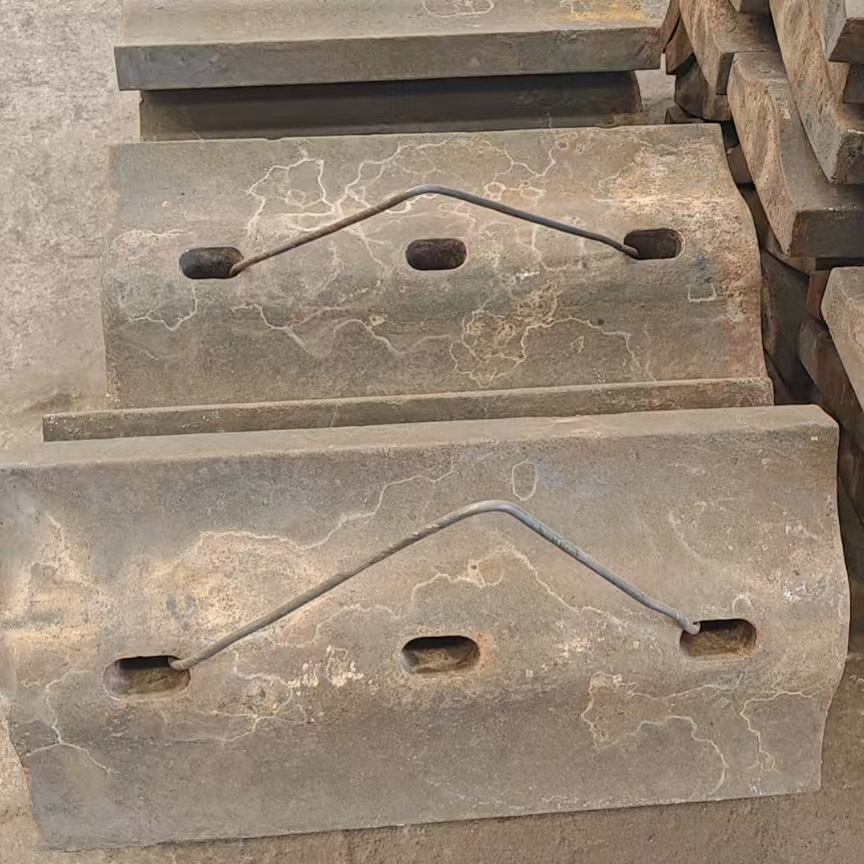

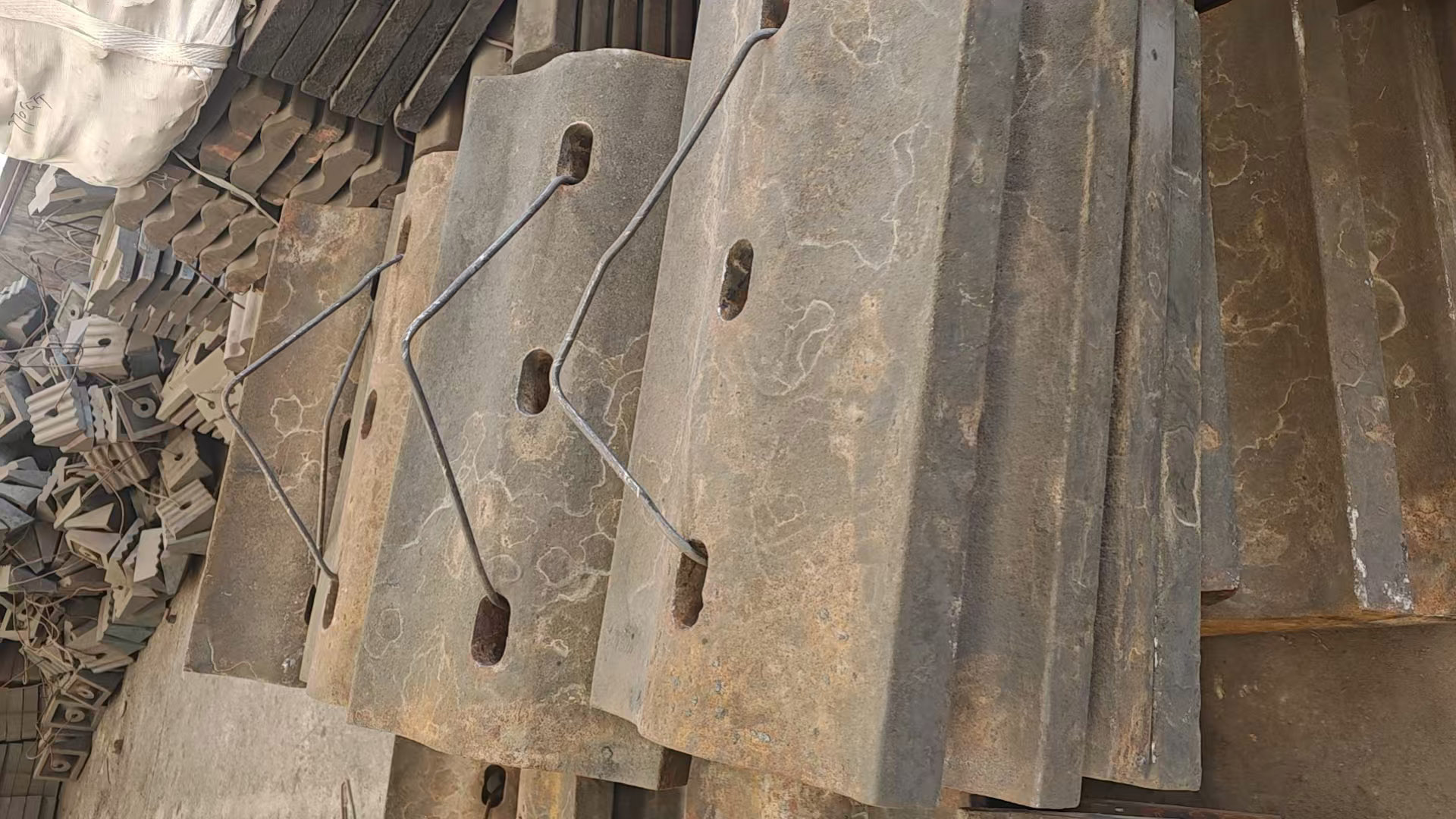

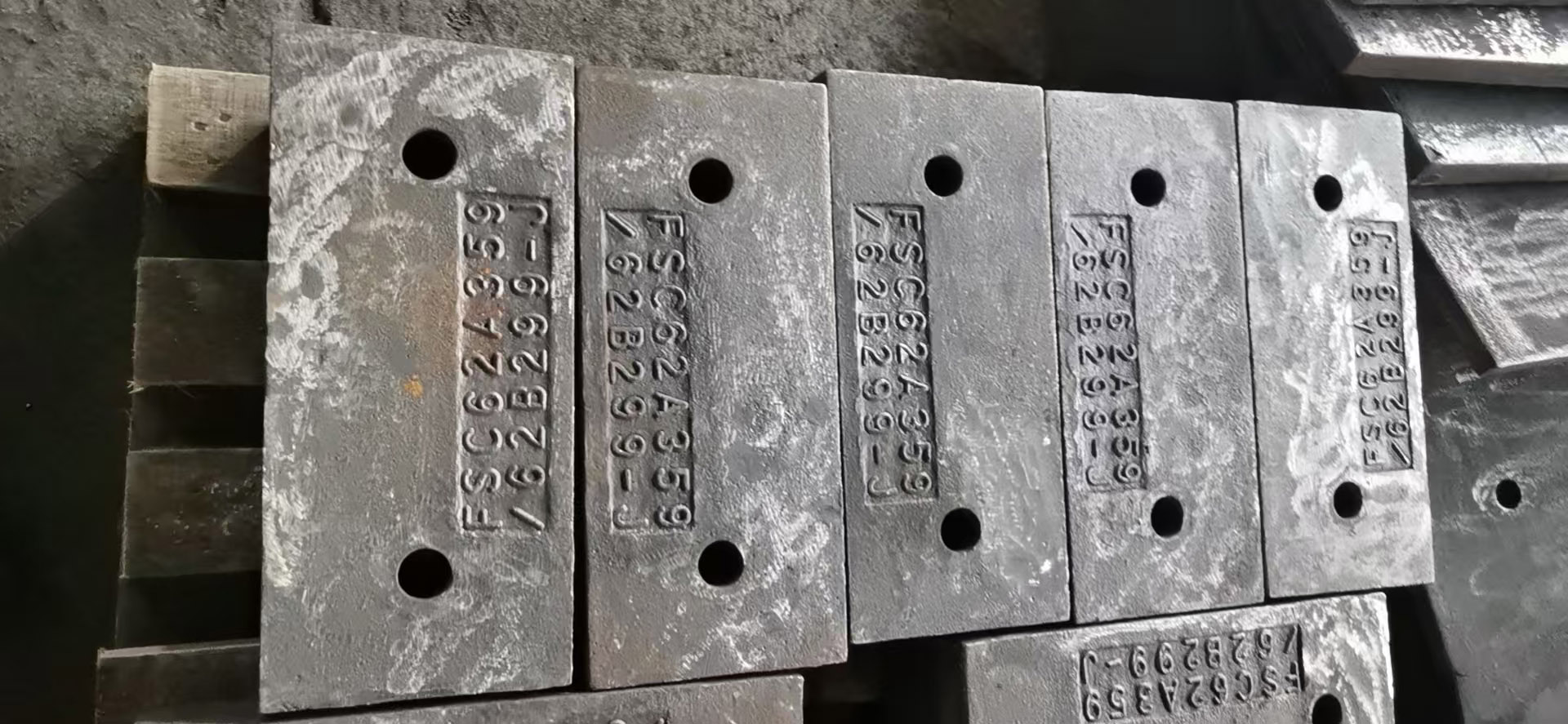

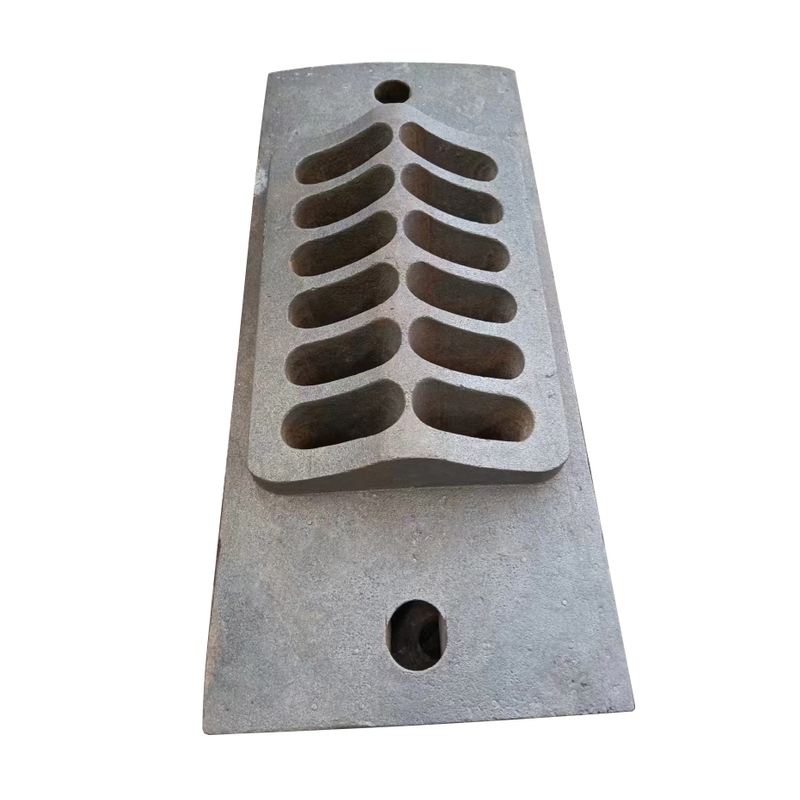

High manganese steel mill liners are cast from manganese-rich alloys that possess a unique ability to rapidly work-harden under repeated impact, forming a tough, wear-resistant surface layer while maintaining core ductility. This combination helps protect the mill shell and improves the grinding media circulation pattern for increased grinding efficiency.
Ball mills in mining
SAG and AG mills (when high impact resistance required)
Heavy duty grinding circuits
Export standard packing with protection against moisture and corrosion
Mill Test Certificate (MTC) and inspection reports
Customized design based on working conditions
Engineering support for liner layouts and material selection
