Grinding rods are a decisive performance variable in rod mill operations. The right rod material, diameter mix, straightness, heat treatment, and replenishment practice can improve product-size control, reduce unplanned shutdowns, lower media consumption, and support more stable downstream beneficiation or processing.
At SHANDONG ALLSTAR GRINDING BALL CO., LTD., we manufacture grinding media for mining, cement, and power-generation applications, including grinding rods, forged steel balls, cast steel balls, grinding balls, and grinding cylpebs. We also support overseas brand owners, wholesalers, and manufacturers with dependable OEM production. From a media-manufacturing perspective, we see a consistent pattern: rod mill performance improves not simply by buying "harder steel," but by matching the grinding rod to the mill, ore characteristics, operating conditions, and target product size.
A rod mill is a horizontal rotating mill that uses long steel rods as grinding media. Rather than relying primarily on point impact, rods create more line-contact grinding as they tumble and roll in a relatively parallel arrangement. This makes rod mills valuable where operations need controlled reduction and a narrower particle-size distribution.
In many mineral-processing circuits, rod mills are used as a primary grinding stage after crushing. They can handle relatively coarse feed and prepare material for ball milling, magnetic separation, flotation, gravity concentration, or other downstream stages. Typical rod mill feed can range from about 6 mm to 25 mm, while the reduction ratio depends on ore competence, mill configuration, and circuit design.
The performance of the rod charge affects four critical outcomes:
- Grinding efficiency and throughput
- Product-size consistency and control of oversize
- Rod consumption and total media cost
- Mill reliability, especially resistance to rod tangling and breakage
A rod mill can only deliver stable results when its grinding rods maintain their intended geometry throughout service. Bent, fractured, excessively worn, or poorly matched rods disturb the charge motion and can quickly turn a controllable circuit into a variable and expensive operation.
Grinding rods improve performance because their elongated shape creates a different grinding mechanism from spherical media. In a rod mill, rods generally lie parallel to the mill axis and preferentially act on larger particles trapped between neighboring rods.
This produces several operational advantages:
- Less excessive fines generation than many ball-milling duties
- More uniform discharge sizing
- Better control of the coarse fraction
- Improved suitability for sand, mineral, and coarse-grinding applications
- More predictable feed for downstream separation equipment
Rod mills are commonly selected when the desired product is in the intermediate range, such as approximately 1–3 mm, and when controlling slimes or fines is important.
For example, if a mineral-processing plant feeds a magnetic separator with an unstable and overly fine mill product, recovery can suffer because particles may not behave consistently in the separation stage. A properly selected rod charge can help produce a steadier feed size distribution, making the entire circuit easier to control.
Rod straightness is not optional. It is a core reliability requirement. A rod that bends during operation can disrupt the parallel charge arrangement, create tangling, and increase the chance of rod breakage, liner damage, or mill stoppage.
Industry training guidance emphasizes that rod tangling should be avoided through the use of straight rods. It also notes that rod length should be slightly shorter than the effective mill length, typically around 150–152 mm shorter, so the rods can move correctly without end-wall interference.
At SHANDONG ALLSTAR, we focus on manufacturing discipline because the rod's geometry must survive real operating loads—not only look acceptable at shipment. For OEM customers and industrial buyers, this means specifying clear straightness, length tolerance, steel chemistry, hardness, and inspection requirements before production begins.
Operational impact of straight grinding rods:
- Smoother cascading and rolling action
- Lower risk of rod entanglement
- Fewer emergency mill inspections
- More consistent power draw
- Reduced chance of premature liner or shell-end wear
- Better availability for high-throughput plants
Rod diameter strongly influences grinding performance. Large-diameter rods deliver greater impact energy and are more effective for breaking coarser feed. Smaller rods provide greater total surface area and may improve fine-size reduction—but if they become too small, they are more likely to bend, snap, or create operational "scats."
A technically sound grinding rod program uses a graduated rod charge, rather than treating every rod as interchangeable. The initial charge normally includes a range of diameters selected around the feed size, ore hardness, mill diameter, and target product.
| Operating condition | Rod-charge approach | Expected benefit |
|---|---|---|
| Coarse, competent feed | Higher proportion of larger rods | More breakage energy and better coarse-particle reduction |
| Moderate feed with stable circuit | Balanced diameter mix | Stable throughput and controlled product size |
| Fine grinding duty | Smaller rods, used carefully | More grinding surface area |
| High rod breakage risk | Avoid excessive small-diameter rods | Lower tangling and fracture risk |
| Worn-charge condition | Timely addition of new large rods | Restored grinding capability and charge balance |
Technical sources commonly advise replacing rods when they wear to around 25 mm in diameter, although the actual replacement point should be validated against plant conditions, product size, and breakage history.
The key lesson is simple: rod diameter must be managed as a system. Adding only one size, delaying replacement, or allowing the charge to become dominated by worn small rods can reduce grinding effectiveness even if the mill itself appears mechanically sound.
A grinding rod experiences repeated impact, abrasion, bending stress, and corrosion-related wear in wet circuits. Performance therefore depends on more than nominal hardness. The best rod must balance:
- Wear resistance
- Core toughness
- Resistance to bending
- Resistance to fracture
- Consistent hardness through the cross-section
- Dimensional stability under mill conditions
A rod that is too soft may wear rapidly and lose its grinding profile. A rod that is too brittle may crack or break under impact. The preferred result is a rod with a controlled combination of surface hardness and internal toughness.
Grinding rods are typically made from selected steel grades and heat treated to improve wear and impact resistance. Quality rods should resist cracking, bending, and premature wear during service. [camasteel]
For SHANDONG ALLSTAR's OEM and industrial customers, a technical specification should include more than rod diameter and length. It should also address:
- Chemical composition requirements
- Surface and core hardness targets
- Straightness tolerance
- Length tolerance
- Impact performance requirements
- Inspection and traceability expectations

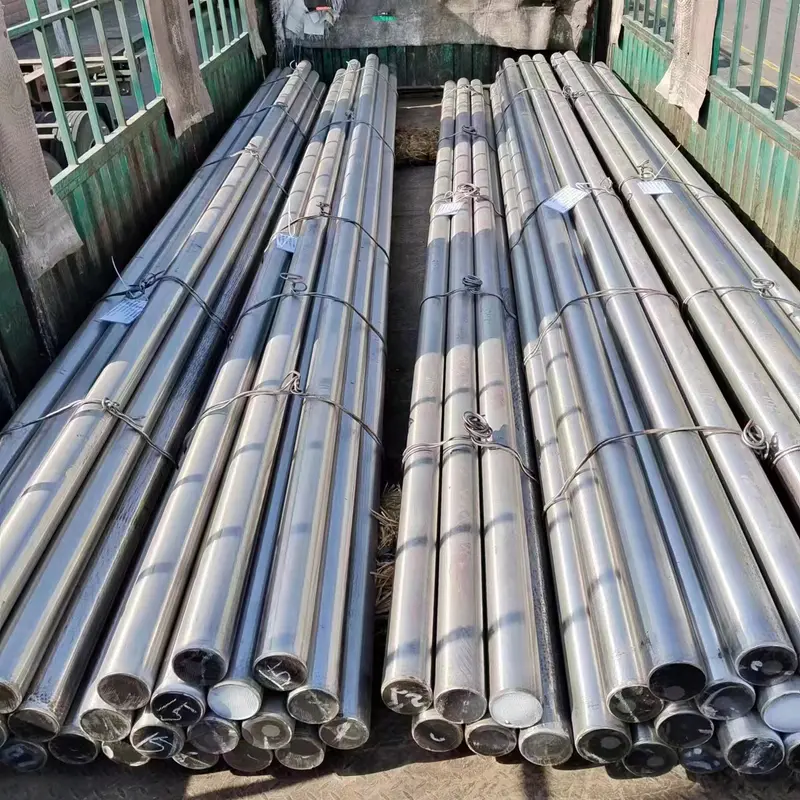

- Packaging and shipping requirements for long products
Even premium grinding rods cannot compensate for poor operating practice. Rod performance should be evaluated alongside mill charge volume, speed, slurry density, feed size, and classification efficiency.
Rod mill charge levels are often operated near 45% of internal mill volume, although the practical range may vary substantially according to the application. Wet rod-milling circuits commonly operate at about 60%–75% solids by mass.
1. Confirm feed-size control. Do not allow oversized crusher discharge to overload the rod charge.
2. Select rod length for the mill. Use rods slightly shorter than the internal grinding chamber to reduce end-contact problems.
3. Use a controlled diameter mix. Match large rods to coarse breakage needs and replenish worn rods before the charge becomes too fine.
4. Monitor rod consumption. Track kilograms of steel consumed per tonne of ore, not only total rods purchased.
5. Inspect for bending and breakage. Record rod failures by diameter, operating period, ore type, and mill condition.
6. Review mill speed and filling level. Excessive charge volume can increase wear and reduce grinding efficiency, while insufficient filling can lower throughput.
7. Connect media data to process data. Compare rod condition with throughput, power draw, cyclone performance, product size, and downstream recovery.
This data-based approach helps operations distinguish between a media problem and a broader circuit problem.
High consumption can result from abrasive ore, unsuitable material selection, poor heat treatment, excessive mill speed, high charge volume, or corrosive slurry conditions.
Recommended response: Review the media specification alongside ore abrasion data and actual wear patterns. Measure consumption by campaign and determine whether the loss is uniform wear, bending, fracture, or abnormal breakage.
Tangling usually indicates bent rods, incorrect rod length, excessive use of undersized rods, unsuitable mill operating conditions, or poor charge management.
Recommended response: Remove damaged rods promptly, verify rod straightness, confirm length tolerance, and restore a balanced rod-size distribution.
When discharge size becomes inconsistent, the issue may be a worn charge, inconsistent feed size, poor classification, or changing pulp density.
Recommended response: Inspect the rod charge before changing mill settings. A charge dominated by small, worn rods may lack the impact energy needed to control coarse particles.
Breakage is especially costly because it can create scats, disrupt grinding action, and increase downtime.
Recommended response: Investigate whether fractures originate from manufacturing defects, excessive brittleness, bent rods, liner condition, feed tramp metal, or severe operating conditions. Do not judge rod quality solely by initial hardness; toughness and straightness matter equally.
SHANDONG ALLSTAR GRINDING BALL CO., LTD. positions grinding media as a process-performance component, not merely a consumable product. We support customers in mining, cement, and power applications with grinding rods, forged steel balls, cast steel balls, grinding balls, and grinding cylpebs.
For global brand owners, distributors, wholesalers, and manufacturers, our OEM service can support product specifications aligned with local market and end-user requirements. We work toward the practical factors that buyers and operators care about most:
- Consistent product specifications
- Reliable manufacturing quality
- Custom dimensions and OEM branding support
- Solutions for mining, cement, and power-industry grinding
- A portfolio covering both rod-mill and ball-mill media requirements
- Communication focused on long-term supply relationships
A customer-focused media program begins with the actual operating duty. Before selecting grinding rods, our technical sales team should understand your mill dimensions, feed size, ore properties, target product, water chemistry, current rod consumption, and key operating challenges.
The most effective way to improve rod mill performance is to treat grinding rods as a controlled engineering input. Select the right material, maintain rod straightness, manage the diameter distribution, replace worn rods on time, and connect media performance to plant operating data.
Contact SHANDONG ALLSTAR GRINDING BALL CO., LTD. today to discuss OEM grinding rods, forged steel grinding balls, cast steel balls, grinding media specifications, and a rod-charge solution tailored to your mining, cement, or power-generation operation.
Grinding rods reduce coarse material through tumbling, rolling, abrasion, and line-contact breakage. They are commonly used to create a more controlled particle-size distribution with fewer excessive fines than certain ball-milling applications.
Grinding rods improve efficiency when their diameter, length, straightness, material quality, and charge mix match the mill's operating duty. Properly managed rods improve breakage, reduce tangling, stabilize product size, and reduce avoidable downtime.
Many operations replace rods when they wear to approximately 25 mm in diameter because very small rods are more susceptible to bending and fracture. The best replacement point should be confirmed using mill data, rod condition, product size, and operating experience.
Common causes include poor straightness, excessive wear, unsuitable rod length, an unbalanced rod charge, inappropriate operating conditions, and high mechanical stress. Bent rods interfere with the parallel arrangement needed for stable rod-mill action.
Key inputs include mill diameter and length, feed size, feed hardness, abrasiveness, target product size, wet or dry operation, slurry conditions, mill speed, current media consumption, and known issues such as breakage or tangling.
Yes. SHANDONG ALLSTAR GRINDING BALL CO., LTD. provides OEM support for overseas brands, wholesalers, and manufacturers. Customers should share required dimensions, material specifications, hardness requirements, packaging needs, branding requirements, and target application.
