At SHANDONG ALLSTAR GRINDING BALL CO., LTD., we help mining, cement, and power-generation customers control one of the most influential variables in comminution: the ball size distribution (BSD) inside the mill. The impact of ball size distribution on the final product particle size is significant because grinding media determine collision energy, contact frequency, breakage probability, mill power draw, media wear, and ultimately the product PSD delivered to the next process stage.

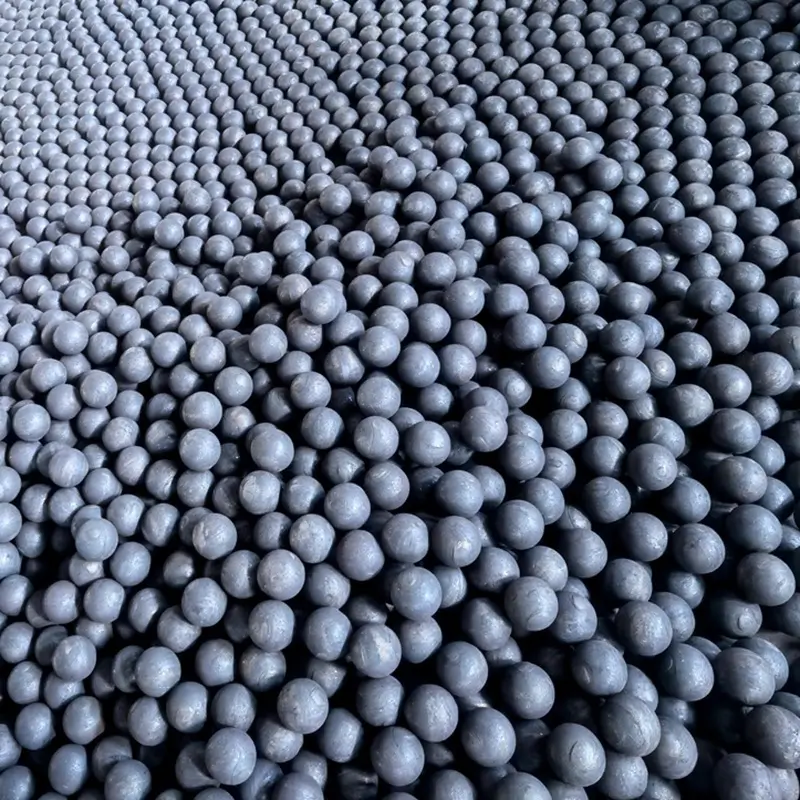

As a global manufacturer of forged steel grinding balls, cast steel balls, grinding rods, and grinding cylpebs, we provide OEM support for overseas brands, wholesalers, and manufacturers. From our production and technical-service perspective, the best media charge is rarely "the biggest ball possible" or "the smallest ball possible." It is a controlled blend designed around feed size, ore competency, target P80, mill type, operating conditions, and classification performance.
Why Ball Size Distribution Changes Final Particle Size
Ball size distribution means the proportion of different grinding-media diameters in a mill charge. It may include large, medium, and small forged or cast grinding balls, each serving a different breakage role.
A single-size ball charge can work in controlled laboratory conditions, but industrial circuits usually process a broad feed-size range. Fresh feed may contain coarse particles that need high-impact breakage, while circulating load contains partially ground material that needs attrition and repeated contacts. A properly selected mixed charge addresses both requirements.
The final product particle size is normally assessed using metrics such as:
- P80: The size at which 80% of product particles pass.
- P50: The median particle size.
- D10, D50, and D90: Common particle-size-distribution indicators.
- PSD width or span: A measure of whether the product is tightly controlled or broadly distributed.
- Specific surface area: Especially important in cement and fine-mineral applications.
In practical terms, a media charge with too many large balls may leave excessive coarse material in the discharge. A charge with too many small balls may struggle to break the largest feed particles, creating an unstable circulating load and reduced throughput.
| Grinding media size | Main grinding action | Best suited feed | Typical effect on final product |
|---|---|---|---|
| Large balls | High-impact breakage | Coarse, hard, competent particles | Reduces coarse oversize but can produce a wider PSD if overused |
| Medium balls | Balanced impact and abrasion | Intermediate feed fractions | Supports stable throughput and controlled P80 |
| Small balls | High contact frequency and attrition | Fine feed and regrind material | Improves fine-particle generation and product uniformity |
The physics are straightforward. Ball mass increases sharply with diameter, so larger balls carry more impact energy. This makes them valuable when the mill receives coarse or hard feed. However, large balls offer fewer contact points per tonne of media. They are less efficient at repeatedly contacting fine particles.
Smaller balls have lower individual impact energy, but far more grinding contacts occur in the same mill volume. That higher contact frequency can improve fine grinding, especially when feed is already sufficiently fine.
Research on stirred milling found that, for a specified 0–10 μm product class, 15 mm media reduced grinding time by 22.5% compared with 12 mm media in the tested system. This does not mean that 15 mm balls are universally superior; rather, it confirms that media diameter must be matched to the material and target size.
The relationship between media size and final product particle size is not linear. It depends on the entire grinding circuit.
For example:
- A coarse feed requires enough large balls to create fractures in the biggest particles.
- As particles become smaller, they need less impact energy but more frequent contacts.
- If the target moves from a conventional grind to a fine regrind, the optimal top media size often decreases.
- A classifier or hydrocyclone can change the effective feed PSD seen by the mill, which may require a different media blend.
Published comminution work indicates that the smallest media were most energy-efficient when feed F80 was below 100 μm, while small media were inefficient when F80 was coarser than 500 μm. The same work reported that changing from 25 mm media to smaller media in suitable ball-mill applications could produce 10% to 44% power savings.
This distinction matters. A plant cannot select a ball size from the desired product size alone. It must consider the largest particles actually entering the mill.
Use this as a starting point, not a final design rule:
1. Measure feed PSD, including F80 and top size.
2. Define the required product PSD, including P80 and allowable coarse fraction.
3. Identify whether breakage is dominated by impact, abrasion, or a combination.
4. Select the top ball size to break the coarse feed reliably.
5. Add medium and smaller balls to improve the finishing stage.
6. Validate the blend through a controlled plant trial.
A well-designed charge commonly contains a range of diameters rather than one nominal size. However, the exact distribution must be confirmed using mill dimensions, mill speed, liner design, slurry density, material hardness, and circuit classification data.
An oversized media charge may look powerful, but it can reduce fine-grinding efficiency.
Common symptoms include:
- Coarse final product or an elevated P80.
- Excessive impact breakage with insufficient fine-particle finishing.
- Higher media consumption cost.
- Reduced number of contacts between media and fine particles.
- More energy used to move media that are too large for the duty.
Large balls remain essential for coarse feed. The problem occurs when their proportion remains too high after the mill feed becomes finer or the circuit begins operating mainly as a regrind stage.
A charge dominated by small balls can create a different problem. It may have excellent surface contact, but insufficient impact energy to break large, competent particles.
Warning signs include:
- Persistent coarse particles in mill discharge.
- Rising circulating load.
- Lower throughput.
- Reduced breakage of the top feed size.
- Greater sensitivity to changes in feed hardness.
Small media work best when the incoming material is already fine enough for abrasion and high-frequency contact to dominate.
An uncontrolled BSD changes continuously due to wear, breakage, top-up practices, and ball segregation. Without regular monitoring, the mill may slowly drift away from its originally designed operating point.
At SHANDONG ALLSTAR, we recommend treating media top-up as a process-control activity, not simply as a purchasing activity. The nominal diameter, hardness profile, breakage resistance, dimensional consistency, and mix ratio all influence how the charge evolves over time.
A practical BSD program should connect laboratory data, operating data, and media quality control. The following workflow helps reduce trial-and-error decisions.
Before changing media sizes, collect data for at least several stable operating days:
- Fresh-feed F80 and top size.
- Mill discharge PSD.
- Cyclone overflow or classifier product PSD.
- Product P80 and percentage of coarse material.
- Mill power draw and throughput.
- Media consumption in kilograms per tonne of ore.
- Slurry density and cyclone operating pressure.
- Ore hardness indicators, such as Bond work index where available.
Do not evaluate a media change using only one shift's product sample. Ore variability, water addition, cyclone pressure, and liner condition can mask the true result.
Different plants need different results. The "best" BSD depends on the objective:
- Maximize throughput: Maintain enough large media to break coarse feed efficiently.
- Reduce P80: Increase the effective fine-grinding component, subject to feed size.
- Improve recovery: Tune PSD to improve mineral liberation rather than merely chasing the smallest possible P80.
- Reduce energy: Minimize unnecessary overgrinding and match media size to feed.
- Lower media cost: Use high-quality media and a blend that reduces wear without sacrificing grind.
Fine grinding is not automatically better. Overgrinding can waste energy, increase sliming, and sometimes harm downstream separation performance.
A useful plant trial may start by changing the proportion of one size class while holding other operating variables as stable as possible. Compare results over enough time to account for residence time and circulating load.
Track:
- P80 and full PSD curve.
- Throughput.
- Specific energy consumption.
- Cyclone overflow quality.
- Media consumption.
- Recovery or downstream product quality.
A clear test protocol gives procurement, plant operations, and metallurgical teams a common basis for evaluating results.
Once a suitable blend is confirmed, protect it through disciplined top-up practice. This means ordering consistent nominal sizes and monitoring how the in-mill charge changes through wear.
For OEM customers and grinding-media distributors, SHANDONG ALLSTAR can support customized product specifications and supply arrangements for forged steel balls, cast steel balls, grinding rods, and grinding cylpebs. The objective is not just to deliver media; it is to help customers maintain a repeatable grinding environment.
Mining circuits often handle variable ore hardness and changing feed-size distributions. A large top ball size may be necessary in primary ball milling, while regrind duties can benefit from smaller media because the feed is already fine.
For fine-grinding applications, industry sources note that conventional ball mills become less energy-efficient as grinding moves below approximately 75 μm, and are rarely economical below around 30 μm in many situations. This is why media selection must also consider whether a vertical stirred mill, tower mill, or another fine-grinding technology is more appropriate.
In cement production, the final PSD influences strength development, setting behavior, water demand, and mill output. A carefully balanced charge can help control residue targets while avoiding excessive ultra-fine generation that may increase energy consumption.
The media selection process should consider clinker hardness, gypsum addition, supplementary cementitious materials, mill ventilation, separator efficiency, and desired Blaine fineness—not ball diameter alone.
For coal, limestone, ash, slag, and other industrial materials, the feed characteristics and target fineness vary widely. Grinding rods may be useful where line-contact grinding and reduced overgrinding are important, while balls and cylpebs can support different stages of size reduction.
In our experience as a manufacturer serving global industrial customers, the most common error is selecting grinding balls solely by nominal diameter or purchase price. A low initial price can become expensive when inconsistent hardness, poor roundness, uncontrolled breakage, or an unsuitable size blend increases consumption and destabilizes the product PSD.
A better purchasing and operating specification should include:
- Nominal ball sizes and permitted size tolerance.
- Required hardness range and hardness-depth expectations.
- Impact toughness and breakage-resistance requirements.
- Target mix ratio by mass for each media size class.
- Top-up schedule and trial-performance criteria.
- PSD, throughput, energy, and wear metrics for acceptance.
The strongest media program connects material quality with metallurgical performance. SHANDONG ALLSTAR works with international brands, wholesalers, and manufacturers seeking OEM grinding-media supply with consistent product specifications and application-focused support.
The impact of ball size distribution on the final product particle size is clear: large balls protect coarse-breakage capacity, small balls improve fine-grinding contact, and a properly maintained blend supports a stable, efficient PSD.
If your mill is producing a coarse P80, consuming excessive media, suffering from unstable circulating load, or missing throughput targets, the media charge may be part of the problem. Contact SHANDONG ALLSTAR GRINDING BALL CO., LTD. to discuss forged steel balls, cast steel balls, grinding rods, grinding cylpebs, and customized OEM supply for your grinding application.
A mixed media charge balances high-energy impact from large balls with the high contact frequency of smaller balls. Large balls help break coarse feed, while smaller balls generally improve fine-particle production and can reduce final P80 when feed size is appropriate.
No. Smaller balls can be more effective for fine feed and regrind duty, but they may not have enough impact energy to break coarse, hard particles. The best size depends on feed PSD, ore competency, target P80, mill type, and circuit conditions.
There is no universal mix. The correct blend should be determined from feed top size, F80, target P80, mill diameter, operating speed, liner profile, slurry density, and classifier performance. A controlled trial is the most reliable way to optimize it.
Possible causes include an oversized media charge, insufficient small media, coarser or harder feed, worn liners, reduced mill power, poor classification, increased cyclone cut size, or changes in slurry density. Review the entire circuit before changing media alone.
Check it regularly as part of plant metallurgical control—especially after changes in ore type, throughput, liner condition, or media supplier. The exact frequency depends on consumption rate and process variability, but monthly or campaign-based checks are often useful starting points.
Neither is automatically best for every duty. Selection should be based on required hardness, impact resistance, wear behavior, mill conditions, ore abrasiveness, and total cost per tonne ground. A qualified supplier should help match the media type to the application.
1. Tomach, P. et al. "[The Influence of the Grinding Media Diameter on the Grinding Kinetics of a Stirred Mill]." *Materials*, 2024.
2. CEEC International. "[Energy Savings and Improved Recovery with Small Grinding Media]." Conference proceedings.
3. CEEC International. "[Modified Bond and Rittinger Energy-Size Relationships for Grinding]."
4. Metso. "[Vertimill®]." Product and application information.
5. Metso. "[Stirred Mill System Modules]." Grinding, classification, and particle-analysis information.
6. AusIMM. "[Comparison Between Ball Mill and Vertical Stirred Mill for the Fine Grinding of a Low-Grade Iron Ore]."
7. CEEC International. "[A Specific Energy-Based Ball Mill Model: From Batch Grinding to Continuous Operation]."
