In a closed SAG–flotation circuit, the choice between a forged grinding ball vs cast grinding ball is not only a wear-cost decision. It can influence iron release, slurry redox conditions, mineral-surface contamination, collector adsorption, and ultimately the effective performance of flotation reagents. For high-impact SAG duty, forged grinding balls are often the mechanically safer option; however, in sulfide flotation circuits where reagent degradation or poor collector response is linked to iron oxidation products, properly selected high-chromium cast grinding balls can offer important chemical-process advantages.
At SHANDONG ALLSTAR GRINDING BALL CO., LTD., we help global mining, cement, and power-industry customers specify forged steel balls, cast steel balls, grinding rods, and grinding cylpebs for their actual mill environment—not simply by nominal hardness or unit price. As an OEM partner for overseas brands, wholesalers, and manufacturers, we focus on the operating variables that determine total value: impact resistance, breakage risk, abrasion, corrosion, slurry chemistry, and downstream flotation performance.
A closed SAG flotation circuit continuously recirculates ore, water, fines, and dissolved species. This means the grinding media do more than reduce particle size. During wet grinding, steel media can corrode, abrade, and interact electrochemically with conductive sulfide minerals.
For flotation operators, this matters because collectors—including xanthates and other sulfur-based reagents—must adsorb selectively onto target mineral surfaces. When the grinding environment generates excessive dissolved iron or iron oxyhydroxide species, these products may coat mineral surfaces, change slurry potential, consume reagent activity, or reduce collector selectivity.
The issue is often described as "chemical reagent degradation," but it should be evaluated more precisely. The observed loss in flotation performance may result from several linked mechanisms:
- Oxidation and corrosion of grinding media
- Iron ions and iron hydroxide precipitation in the slurry
- Galvanic interaction between steel media and sulfide minerals
- Changes in dissolved oxygen and pulp potential
- Competitive adsorption or reduced adsorption of collectors
- Mineral-surface coatings that make valuable sulfides less floatable
Research on sulfide flotation has shown that galvanic contact between steel media and minerals such as chalcopyrite can produce iron oxyhydroxide surface species and lower mineral floatability. The effect depends strongly on the ore mineralogy, oxygen level, slurry pH, media alloy, and circuit residence time. [ias.ac]

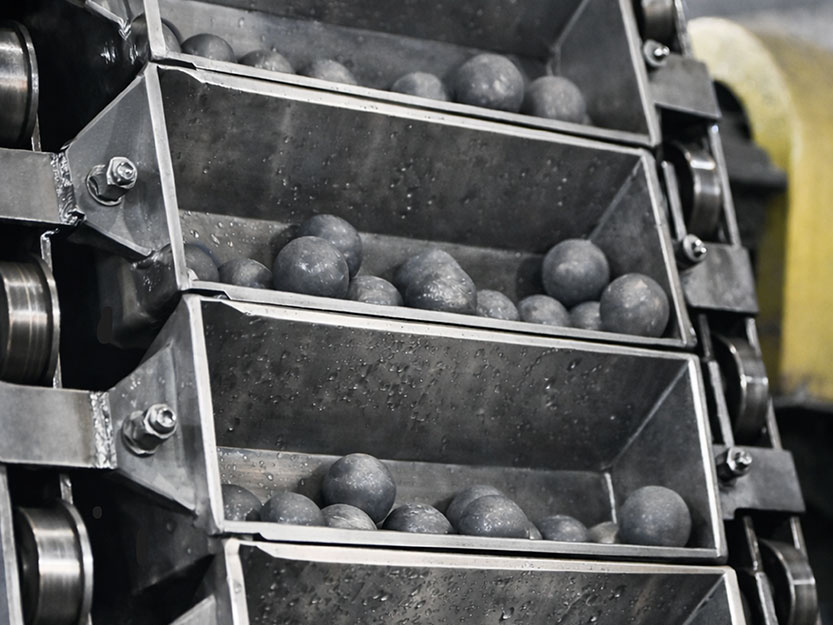

Forged grinding balls are produced by heating steel bar stock and mechanically forming it through forging or rolling, followed by controlled heat treatment. The resulting material typically has a more continuous internal structure than a conventional casting, which is valuable in large-diameter, high-impact milling environments.
In many SAG mills, the grinding charge experiences repeated high-energy impacts from large ore fragments, mill liners, and other media. A quality forged ball is commonly selected where the operation needs:
- Strong resistance to impact fracture
- Reliable performance in large ball diameters
- Lower risk of casting-related shrinkage cavities
- Good toughness under severe SAG conditions
- A predictable wear profile when heat treatment is well controlled
For a coarse primary grinding application, mechanical integrity is essential. A ball that breaks prematurely can alter the size distribution of the media charge, increase consumption, affect throughput, and create unplanned operational variability.
However, standard forged carbon or low-alloy steel can be electrochemically active in wet sulfide grinding. In a closed circuit, its corrosion products may remain in contact with recirculating slurry long enough to affect pulp chemistry and flotation conditions.
This does not mean forged balls are inherently unsuitable for flotation circuits. It means that their selection should not be based only on impact resistance and price per tonne. Where a circuit processes reactive sulfide ores, the plant should examine whether the forged-media chemistry contributes to:
- Higher dissolved or EDTA-extractable iron
- Lower or more reducing pulp potential
- Increased hydrophilic iron hydroxide coatings
- Lower collector adsorption on valuable minerals
- Higher reagent demand or unstable flotation response
Studies comparing forged steel with more corrosion-resistant media have reported more iron hydroxide species with forged media in certain sulfide systems. These surface products can interfere with flotation selectivity, particularly for copper-bearing sulfides.
Cast grinding balls are made by pouring molten alloy into molds. Their performance depends heavily on alloy design, mold quality, heat treatment, internal soundness, and microstructure. "Cast ball" is not a single material category: low-chromium, medium-chromium, and high-chromium cast balls can behave very differently in both wear and flotation chemistry.
For chemical control in a closed SAG flotation circuit, the most relevant comparison is usually forged steel versus high-chromium cast grinding media, not forged steel versus generic cast iron.
High-chromium cast grinding balls commonly develop a hard martensitic matrix with chromium-rich carbides. This structure can improve resistance to abrasion and corrosion. In a suitable circuit, lower corrosion can reduce the release of reactive iron species into the slurry.
Potential process benefits include:
- Lower iron contamination in the mill discharge
- Reduced formation of iron oxyhydroxide surface coatings
- A more oxidizing pulp environment in some sulfide circuits
- Improved preservation of collector activity and selectivity
- Lower media consumption in corrosive grinding conditions
A Northparkes concentrator case study reported that switching from forged steel to more electrochemically inert high-chromium grinding media reduced EDTA-extractable iron and made pulp potential more oxidizing. The reported outcome included statistically measured improvements of 1.0 percentage point in copper recovery, 1.3 percentage points in gold recovery, and at least 0.7 percentage point in final copper-concentrate grade.
That result should not be treated as a universal promise. Every orebody differs. Still, it demonstrates why media selection deserves a metallurgical trial rather than a procurement-only comparison.
High-chromium cast balls can deliver excellent abrasion and corrosion resistance, but they may be less tolerant of very high-impact conditions than a properly manufactured forged ball. In a SAG mill with large feed, severe impact, and high ball-to-liner collision energy, breakage risk must be assessed carefully.
The decision is therefore not simply:
- Forged = good
- Cast = bad
The correct question is:
Which media alloy and manufacturing route delivers the lowest total operating cost while maintaining stable grinding performance and favorable flotation chemistry?
| Selection factor | Forged grinding ball | High-chromium cast grinding ball |
|---|---|---|
| Manufacturing route | Hot forged or rolled from steel bar | Molten alloy cast into molds |
| Typical SAG strength | Strong choice for high-impact duty | Must be validated for impact severity |
| Toughness | Usually higher when properly forged and heat treated | Varies by alloy, heat treatment, and casting quality |
| Abrasion resistance | Good, depending on alloy and hardness | Often very strong in abrasive applications |
| Corrosion resistance | Can be lower for standard forged steel | Often higher with high-chromium alloy design |
| Iron release risk | Can be higher in reactive wet sulfide circuits | Can be lower when corrosion resistance is higher |
| Flotation-chemistry effect | May create more active iron species in some ores | May reduce iron-related surface contamination |
| Best use case | High-impact primary/SAG duty requiring toughness | Corrosive, abrasive conditions where chemistry and wear justify the alloy |
| Main risk | Corrosive wear and pulp-chemistry effects | Breakage if improperly selected for severe impact |
The link between grinding balls and reagents is indirect but operationally significant. A collector is not necessarily "destroyed" immediately when it contacts grinding media. More commonly, the grinding environment changes the mineral surface and slurry conditions so that the collector becomes less effective.
When iron corrosion products deposit on a sulfide surface, they can mask the sites where collectors should adsorb. For example, iron hydroxide films on chalcopyrite may make the surface more hydrophilic and reduce its response to xanthate collectors.
This can lead to:
- Lower copper recovery
- Slower flotation kinetics
- Higher collector dosage to maintain performance
- Less selective separation between valuable sulfides and pyrite
- Greater sensitivity to pH and oxygen variation
Steel-media grinding has been shown to generate oxidation species on chalcopyrite surfaces, reducing flotation response in some laboratory systems.
A sulfide mineral and steel grinding media can form a galvanic couple in an aqueous electrolyte. The steel may act as the anodic material, while a more noble sulfide mineral acts as the cathodic surface. Oxygen can intensify this interaction.
The flotation consequence is mineral-dependent. Steel grinding may depress one sulfide while benefiting another. In one study, steel-ball grinding improved pyrite flotation but reduced chalcopyrite floatability due to differences in surface oxidation behavior.
For this reason, do not generalize from a copper–pyrite ore to lead–zinc, gold, nickel, molybdenum, or polymetallic ore without test work.
At SHANDONG ALLSTAR GRINDING BALL CO., LTD., we recommend a structured, evidence-based approach before changing media in a SAG–flotation circuit.
Start with operational data, not assumptions. Determine whether the concern is truly reagent degradation, or whether it is a broader grinding-chemistry issue.
Track:
- Collector and frother consumption per tonne
- Copper, gold, zinc, lead, or nickel recovery
- Concentrate grade and flotation kinetics
- SAG throughput and specific energy
- Ball consumption, breakage, and size distribution
- Pulp pH, dissolved oxygen, and oxidation-reduction potential
- Dissolved iron and EDTA-extractable iron
- Mineral-surface condition using appropriate laboratory analysis
A closed comminution circuit may not require one media type everywhere. In some operations, forged balls are best suited to the severe-impact SAG stage, while high-chromium cast media may be evaluated in a secondary ball-mill stage where abrasion and corrosion are more important than impact.
This staged approach can balance:
- SAG reliability
- Media wear
- Chemical stability
- Flotation response
- Total grinding-media cost
A meaningful trial requires more than replacing a few tonnes of balls. The mill charge changes gradually, so results should be interpreted only after the relevant media population has substantially turned over.
A robust trial should include:
1. A stable baseline period using the existing media.
2. Defined feed mineralogy and operating ranges.
3. Media consumption and breakage monitoring.
4. Pulp chemistry measurements at mill discharge and flotation feed.
5. Metallurgical balance comparisons.
6. A total-cost calculation that includes recovery value, not only media price.
SHANDONG ALLSTAR GRINDING BALL CO., LTD. supplies grinding media for customers who need more than a catalog specification. We manufacture forged grinding balls, cast grinding balls, grinding mill balls, grinding rods, and grinding cylpebs for mining, cement, and power applications, with OEM support for international brands, distributors, and manufacturers.
Our approach is based on matching product design to operating conditions:
- Forged steel grinding balls for demanding impact resistance and SAG applications
- Cast steel and high-chromium grinding balls for selected abrasion- and corrosion-sensitive duties
- Custom sizing, hardness targets, packaging, branding, and OEM supply support
- Quality-focused manufacturing for consistent performance across repeat shipments
- Technical discussion based on ore type, mill size, ball charge, feed size, slurry chemistry, and downstream process requirements
We do not recommend selecting forged or cast grinding balls from a generic comparison chart alone. The strongest answer comes from combining material engineering with plant operating data.
Not always, but forged balls are often preferred where high impact resistance and toughness are critical. The final decision should consider ball size, ore competence, mill speed, liner design, feed size, abrasion, corrosion, and the risk of cast-media breakage.
They may help in ore-specific situations when a corrosion-resistant cast alloy reduces reactive iron release and mineral-surface contamination. This can support better collector adsorption and flotation selectivity, but the effect must be confirmed through laboratory and plant trials.
The main concern is usually not a simple one-step destruction of xanthate. Forged steel can change pulp chemistry and generate iron oxidation products that interfere with mineral surfaces and reduce the effectiveness of collector adsorption.
High-chromium media can be more corrosion resistant than standard forged steel. In suitable sulfide circuits, this can lower iron contamination, improve pulp-potential conditions, and reduce hydrophilic iron hydroxide coatings on valuable mineral surfaces.
This can be a practical strategy. Forged balls may suit the high-impact SAG stage, while high-chromium cast balls may be considered in lower-impact secondary grinding where abrasion, corrosion resistance, and flotation chemistry are more influential.
Measure media consumption, breakage, throughput, energy, particle-size distribution, pH, dissolved oxygen, pulp potential, dissolved iron, reagent dosage, recovery, concentrate grade, and flotation kinetics. Compare these results over stable operating periods.
If your closed SAG flotation circuit shows rising collector dosage, unstable recovery, excessive forged-ball consumption, iron contamination, or variable flotation kinetics, contact SHANDONG ALLSTAR GRINDING BALL CO., LTD. for a grinding-media assessment. Share your ore type, mill dimensions, ball sizes, current media consumption, slurry conditions, and flotation targets, and we can help you evaluate the appropriate forged, cast, or staged-media solution for your operation.
1. Centers for Disease Control and Prevention, National Institute for Occupational Safety and Health. [Corrosion Rates of Grinding Media in Mill Water].
2. Frontiers in Materials. [Effect of Grinding Media on Grinding-Flotation Behavior of Chalcopyrite and Pyrite].
3. ACS Omega. [Effects and Mechanisms of Grinding Media on the Flotation Behavior of Scheelite].
4. Australian Institute of Mining and Metallurgy. [Conducting High Chrome Grinding Media Trials at Newcrest's Ridgeway Concentrator].
5. CEEC International. [Metallurgical Improvements at Northparkes Concentrator Through the Application of High Chrome Grinding Media].
6. Indian Academy of Sciences. [Electrochemical Aspects of Grinding Media-Mineral Interaction on Flotation].
7. ScienceDirect. [Galvanic Interaction of Grinding Media With Pyrite and Its Effect on Flotation].
8. Global Met Tech. [Steel Grinding Media].
