How to handle mill liner displacement in large scale ball mills? This is one of the most important maintenance questions for mining, cement, and power plants that rely on stable grinding performance. When a liner shifts, loosens, or breaks away from its seat, the result is often reduced grinding efficiency, higher energy consumption, abnormal vibration, and costly shutdowns.
At SHANDONG ALLSTAR GRINDING BALL CO., LTD., we understand that liner stability is not just a maintenance issue. It is a production issue, a safety issue, and a cost-control issue. In large-scale ball mills, every mill liner must be selected, installed, and monitored with precision to protect the shell and support consistent throughput.
Mill liner displacement usually starts with a combination of mechanical stress, installation error, and wear progression. In heavy-duty ball mills, liners are exposed to impact, abrasion, thermal cycling, and repeated load variation, which can gradually weaken the fixing system.
Common causes include:
- Improper installation torque or uneven bolt tightening.
- Incorrect liner fit caused by manufacturing tolerance mismatch.
- Excessive shell vibration from imbalance, overload, or misalignment.
- Worn fasteners or damaged backing materials.
- Poor liner design for the ore type, mill speed, or operating conditions.
- Material buildup that creates uneven loading and prying force.
For large operations, the root cause is often not one single mistake. It is usually a chain of small issues that accumulate over time.
The best way to handle liner displacement in large scale ball mills is to catch it early. Once a liner begins to move, the damage can escalate quickly.
Watch for these symptoms:
- Unusual knocking or rattling sounds from the mill.
- Sudden vibration changes during operation.
- Drop in grinding efficiency or throughput.
- Visible gap formation at liner joints.
- Loose bolts, cracked heads, or broken fastening parts.
- Abnormal wear patterns on adjacent liners or shell plates.
A disciplined inspection routine is essential. Visual checks, torque verification, vibration monitoring, and maintenance logs should all work together to detect problems before shutdown becomes unavoidable.
If liner displacement is suspected, a structured response matters. Acting too late can damage the shell, accelerate liner failure, and increase replacement cost.
If operating conditions allow, lower the mill load and observe vibration, noise, and performance trends. This helps reduce further movement while the root cause is assessed.
Do not continue running a mill with suspected liner displacement for long periods. A controlled stop is far safer than a forced failure.
Check for:
- Loose or missing bolts.
- Deformed liner seats.
- Cracks around liner edges.
- Flattened, worn, or distorted backing surfaces.
- Shell damage beneath the liner.
Any liner that has shifted significantly should be replaced or reinstalled according to the manufacturer's procedure. Fasteners and worn accessories should also be renewed, not reused.
Do not stop at replacement. Fix the deeper issue, such as incorrect liner selection, uneven tightening, poor mill alignment, or unsuitable operating conditions.
Before restarting, confirm:
- Proper bolt torque.
- Correct liner seating.
- No trapped debris.
- Uniform contact across the installed section.
- Stable vibration baseline after startup.
Prevention is always more cost-effective than emergency repair. In our experience, the most reliable mills are those that combine strong liner design with disciplined maintenance routines.
Not every liner works for every mill. A liner should match:
- Mill diameter and length.
- Speed and charge behavior.
- Ore hardness and abrasiveness.
- Wet or dry grinding conditions.
- Required wear life and downtime window.
This is where OEM customization matters. At SHANDONG ALLSTAR GRINDING BALL CO., LTD., we provide OEM services for overseas brand owners, wholesalers, and manufacturers, helping customers choose liner-related grinding consumables that fit their production goals.
Even a premium liner can fail early if installed poorly. Installation should follow a strict sequence with measured torque values, clean contact surfaces, and correct seating.
For large mills, weekly or monthly inspection may not be enough in high-load operations. Critical equipment should have a risk-based inspection plan that includes vibration tracking, bolt checks, and wear mapping.
Frequent overloads, unstable feed, and repeated start-stop cycles can all increase liner movement. A stable operating rhythm protects the liner and the mill shell.

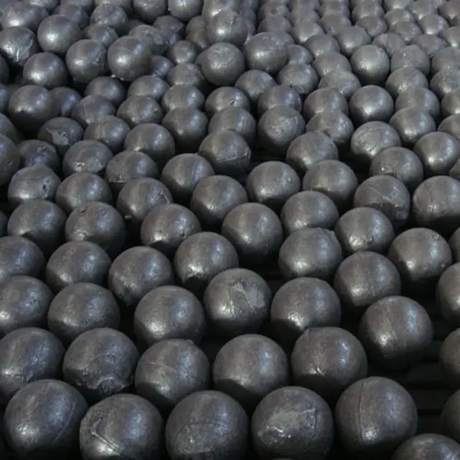

As a global manufacturer serving mining, cement, and power industries, SHANDONG ALLSTAR GRINDING BALL CO., LTD. focuses on durability, consistency, and application fit. Our product range includes grinding balls, mill balls, forged steel balls, cast steel balls, grinding rods, and grinding segments, all designed to support efficient grinding systems.
Why this matters for liner displacement:
- A stable grinding environment reduces shock loading.
- Better charge control helps reduce abnormal liner stress.
- Durable consumables support longer maintenance intervals.
- OEM support helps align product design with customer-specific mill conditions.
When liner displacement happens repeatedly, the issue is often not just the liner. It may also involve media selection, grinding dynamics, and system balance.
From a plant management perspective, liner displacement should never be treated as a minor issue. A small shift can quickly become a shell protection failure, and shell damage is far more expensive than liner replacement.
The true cost usually includes:
- Lost production time.
- Emergency maintenance labor.
- Secondary damage to bolts, plates, or shell surfaces.
- Higher power consumption.
- Reduced grinding efficiency after restart.
In large-scale ball mills, the smartest decision is usually to intervene early, inspect thoroughly, and rebuild with the root cause in mind.
Use this checklist during routine mill inspections:
1. Check liner bolt torque and fastener condition.
2. Inspect for gaps, cracks, and edge lifting.
3. Listen for new mechanical noise during operation.
4. Monitor vibration changes across shifts.
5. Review wear distribution and replace irregular sections.
6. Confirm operating load is within design limits.
7. Verify that liner material and profile still match the process.
A simple checklist can prevent a serious shutdown when used consistently.
To improve readability and SEO performance, place visuals in these sections:
- After the introduction: Insert a photo of a large-scale ball mill interior or liner layout.
- In the "Early Warning Signs" section: Add a simple annotated diagram showing displacement symptoms.
- In the "Step-by-Step Response Plan" section: Use a process flow chart.
- In the "Maintenance Checklist" section: Add an icon-based checklist graphic.
- Near the CTA: Include a factory or product image showing OEM grinding ball production and inspection.
Short videos of liner installation, torque checking, or mill inspection would also increase trust and engagement.
If your plant is facing liner movement, uneven wear, or repeated maintenance downtime, the safest next step is to work with a manufacturer that understands both grinding media and mill reliability. SHANDONG ALLSTAR GRINDING BALL CO., LTD. can support your operation with OEM grinding solutions designed for demanding mining, cement, and power applications.
Contact our team to discuss your mill conditions, liner performance challenges, and custom OEM requirements.
The most common causes are improper installation, loose fasteners, mismatched liner design, shell vibration, and heavy operating stress.
Yes. It can lead to shell damage, severe vibration, reduced grinding efficiency, and unexpected shutdowns if not corrected quickly.
Look for unusual noise, vibration changes, visible gaps, loose bolts, and irregular wear patterns during inspections.
In most cases, significantly displaced liners should be replaced, along with damaged bolts or related fastening parts.
OEM support improves liner fit, material selection, installation consistency, and compatibility with actual mill operating conditions.
Yes. Media size, hardness, and charge behavior can influence impact load and wear patterns, which may affect liner stability over time.
