Large-diameter media splitting in SAG mills is not simply a grinding-ball problem—it is usually the visible result of an interaction between media metallurgy, heat treatment, ball size, charge dynamics, and an aggressive lifter profile. For high-impact SAG milling, SHANDONG ALLSTAR GRINDING BALL CO., LTD. recommends selecting forged SAG grinding balls engineered for core-to-surface consistency, impact toughness, and stable wear rather than relying on cast steel balls designed primarily for abrasive, lower-impact duties.
As a global manufacturer of grinding balls, mill balls, forged steel balls, cast steel balls, grinding rods, and cylpebs, SHANDONG ALLSTAR GRINDING BALL CO., LTD. supports overseas brands, wholesalers, and manufacturers with OEM grinding-media solutions. From our production and customer-support experience, preventing media splitting requires more than purchasing a harder ball. It requires matching the ball's internal structure and toughness to the real trajectory created by the SAG mill liner system.
Key takeaway: When tall lifters produce high-impact cataracting, large-diameter forged grinding balls generally offer a safer and more stable solution than conventional cast steel balls—provided chemistry, forging quality, heat treatment, hardness gradient, and operating conditions are properly controlled.

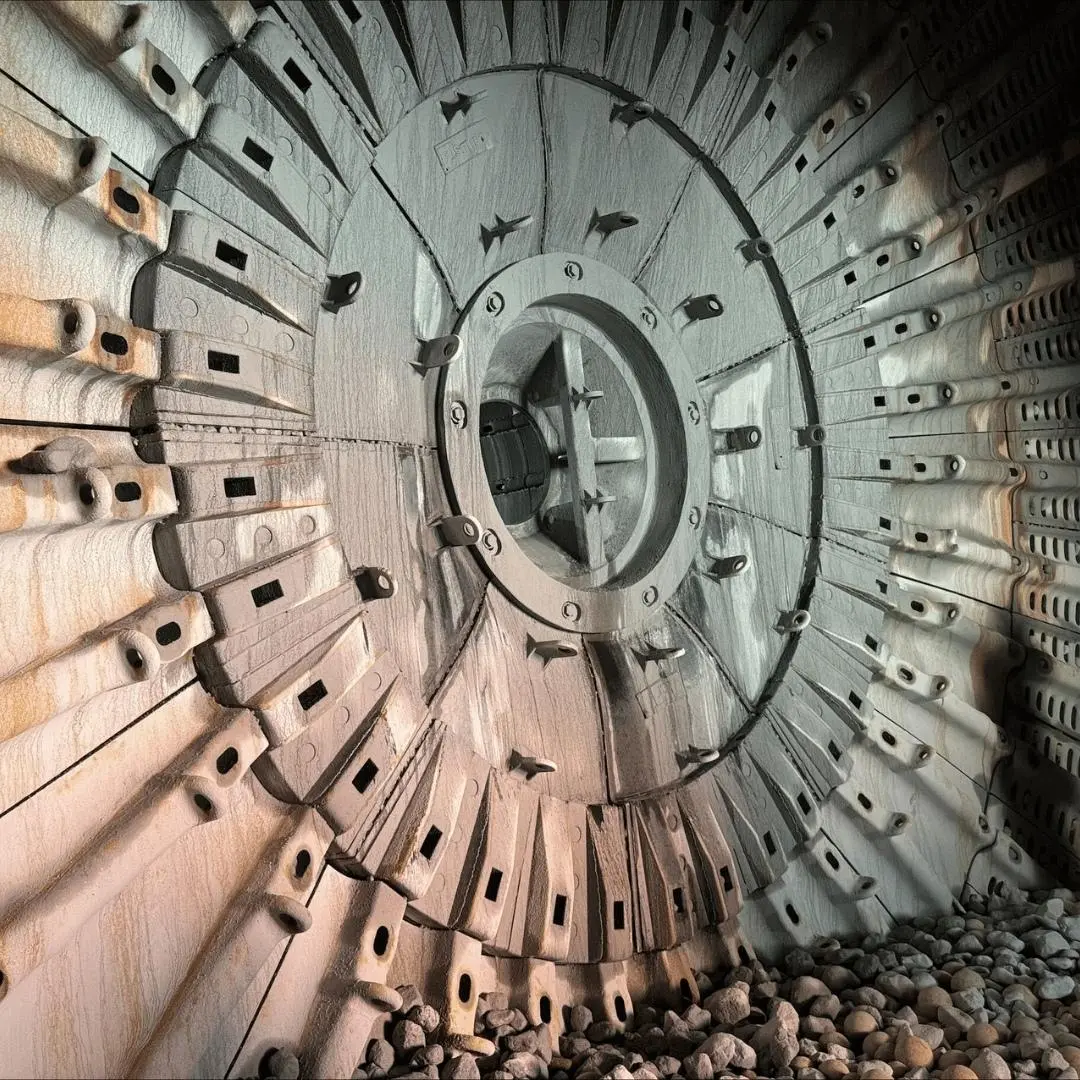

A SAG mill is a high-energy grinding environment. The mill shell rotates, lifters grip the combined ore-and-media charge, and the charge is carried upward before it cascades or cataracts onto the toe of the charge. In a primary grinding circuit, this impact action is essential for breaking coarse ore.
However, more lift is not always better.
High lifter bars and aggressive face angles can increase the trajectory and drop height of large grinding media. This can improve breakage of coarse particles, but it can also raise the probability of severe ball-on-ball, ball-on-rock, and ball-on-liner impacts. Mill-liner specialists note that SAG applications commonly use aggressive profiles specifically to lift ore and media high enough to deliver impact energy against large ore fragments. At the same time, excessive charge motion can convert useful energy into media wear, liner wear, noise, and damaging direct impacts.
For large-diameter SAG balls, the consequences can be serious:
- Radial cracking beginning at a casting defect, hard microstructural zone, or stress concentrator
- Spalling around the surface or impact point
- Fragmentation into scats, which reduces effective grinding mass
- Rapid loss of ball diameter, reducing coarse-particle breakage capability
- Increased screen, crusher, conveyor, and mill-discharge handling load
- Unstable grinding performance caused by changing media size distribution
A split ball is not only a consumables issue. It can change mill power draw, grind size, liner wear behavior, and throughput consistency.
The most damaging event is often not normal ball-on-ore impact. It is the repeated direct collision between a large ball and a hard liner surface. A liner profile that creates an overly aggressive outer trajectory can increase ball-on-liner collisions, accelerating steel wear and reducing milling efficiency.
That is why a media supplier should not evaluate the grinding ball in isolation. At SHANDONG ALLSTAR, we encourage customers to assess the complete SAG comminution system:
1. Mill diameter and effective grinding length
2. Ball size and ball-charge volume
3. Mill speed relative to critical speed
4. Lifter height, spacing, face angle, and wear state
5. Ore competency, abrasiveness, and feed-size distribution
6. Ball-drop trajectory and toe location
7. Existing breakage, scats, and media-consumption history
The central difference between forged and cast grinding media is not merely the production method. It is the internal structure created by the manufacturing route and how that structure responds to repeated impact.
Forged grinding balls are formed from steel bar stock under high-temperature deformation. Proper forging can refine and consolidate the material structure, reduce internal discontinuities, and support a more uniform response under heavy impact. Cast steel balls are poured into molds; their performance depends heavily on alloy design, cooling control, risering, heat treatment, and the absence of shrinkage, porosity, segregation, or other casting-related defects.
Neither process is automatically good or bad. A high-quality cast ball can perform well in a suitable application. But in a large SAG mill running high-energy, large-diameter media under aggressive lifters, impact toughness and internal integrity become decisive selection criteria.
| Selection factor | Forged SAG grinding balls | Cast steel balls |
|---|---|---|
| Manufacturing route | Hot forged from steel bar | Molten alloy poured into molds |
| Internal consistency | Typically dense and more uniform when forging and heat treatment are controlled | Can vary depending on casting soundness, alloy segregation, and cooling control |
| High-impact tolerance | Generally strong for SAG and primary grinding duties | Can be suitable in selected designs, but fracture risk may rise if toughness is insufficient |
| Large-diameter application | Well suited to demanding 94–160 mm SAG media ranges | Must be carefully validated for diameter, alloy, and impact duty |
| Failure tendency under impact | More likely to wear gradually when properly engineered | May crack, spall, or split if brittle zones or defects are present |
| Best-fit environments | High-impact SAG mills, primary ball mills, hard-rock ore | Lower-impact or highly abrasive applications where alloy wear resistance is prioritized |
| Procurement focus | Toughness, hardness uniformity, microstructure, drop-impact performance | Casting integrity, alloy design, heat treatment, hardness and impact validation |
Commercial SAG balls are commonly available in approximately 94 mm to 160 mm sizes, illustrating why internal quality becomes increasingly important as ball diameter and impact energy rise.
Cast steel balls are often selected because they can provide high hardness and attractive initial cost. In many fine-grinding or abrasion-dominant applications, cast media can be a rational choice. The problem appears when a ball optimized for wear resistance is moved into a severe impact environment without sufficient toughness margin.
Industry analyses of grinding-ball failures identify several contributors: chemical composition, heat-treatment control, residual stress, delayed transformation effects, deformation stress, pre-existing defects, and quality-control variation.
1. Internal porosity or shrinkage cavities
A void or discontinuity may remain invisible on the surface but become a crack origin under repeated impact loading.
2. Alloy segregation
During solidification, local chemistry can vary. This can create inconsistent hardness, brittle regions, or uneven transformation through the ball cross-section.
3. Excessive surface-to-core hardness difference
A hard shell over a substantially softer or structurally inconsistent core can create stress concentration during repeated impacts.
4. Over-hardening and inadequate tempering
Higher hardness may improve laboratory abrasion results, but if the resulting microstructure loses toughness, the ball may become vulnerable to cracking.
5. Quench cracking and residual stress
Aggressive cooling can lock stress into the ball. The first visible crack may occur weeks later in the mill, but its origin can be traced back to manufacturing.
6. Improper ball size for the ore and charge
Oversized balls may create unnecessary impact intensity, while undersized balls may fail to break coarse ore efficiently and cause operators to increase speed or charge level.
7. Aggressive or worn liner geometry
As liners wear, charge motion changes. A media design that worked during the first weeks of a liner campaign may behave differently later.
At SHANDONG ALLSTAR GRINDING BALL CO., LTD., we view large-diameter SAG media as a system-engineering product rather than a commodity. Our OEM customers—including overseas brands, distributors, wholesalers, and industrial manufacturers—need media that supports reliable plant performance and protects their reputation with end users.
For SAG applications, the steel grade should be selected based on expected impact severity, ore abrasiveness, and target ball diameter. The chemistry must support through-hardening while retaining adequate toughness after heat treatment.
A proper alloy strategy considers:
- Carbon level and hardenability
- Chromium, manganese, and molybdenum balance
- Grain-refinement potential
- Inclusion cleanliness
- Required hardenability at the ball center
- Sensitivity to quench cracking
- Compatibility with the intended heat-treatment cycle
Forging is valuable because it can help produce a dense, continuous internal structure when raw material quality and deformation control are maintained. This is especially important for large SAG balls that will experience repeated high-energy impacts.
For customers sourcing OEM forged steel balls, the practical question is not simply "Are the balls forged?" It is:
- What raw material standard is used?
- Is the bar inspected before forging?
- Is forging temperature controlled?
- Is sufficient deformation achieved?
- Is the ball heat-treated according to its diameter and steel grade?
- Is every production lot traceable?
A surface hardness result alone is not enough. For a large SAG ball, the internal structure matters just as much as the surface.
SHANDONG ALLSTAR recommends requesting and reviewing:
- Surface hardness test results
- Core or sectional hardness results
- Hardness distribution data, where applicable
- Metallographic examination
- Chemical composition certificate
- Dimensional and weight inspection
- Drop-impact or impact-resistance test protocol
- Lot identification and traceability documents
A high-lift liner profile may be justified for coarse, competent ore. But it should be assessed alongside the selected grinding media. Liner experts emphasize that lifter profile, height, quantity, and volume directly influence grinding performance and charge motion.
For a high-impact mill, a practical optimization plan may include:
1. Map the current lifter profile and wear condition
2. Record mill speed, ball charge, power draw, throughput, and product size
3. Collect and classify broken media by fracture type
4. Measure the size distribution of remaining grinding balls
5. Identify whether breakage occurs early, mid-life, or near end-of-life
6. Conduct a controlled forged-ball trial using the same operating window
7. Compare total cost per tonne, not purchase price per tonne
A disciplined site trial is the fastest way to distinguish metallurgy failure from operating-condition failure. A useful trial should avoid changing too many variables at once.
| Trial stage | What to measure | Why it matters |
|---|---|---|
| Baseline period | Media consumption, split-ball count, throughput, power, P80, liner condition | Establishes the current operating reality |
| Incoming inspection | Chemistry, hardness, diameter, weight, visual quality, traceability | Confirms that supplied media matches specification |
| Controlled loading | Same nominal ball size, charge volume, mill speed, and operating regime | Reduces false comparisons |
| In-service sampling | Ball size distribution, scats weight, fracture type, wear pattern | Identifies how the media actually fails |
| Performance review | Cost per tonne milled, throughput, energy, product size, downtime | Shows total economic impact |
A successful forged SAG ball trial should not be judged only by whether zero balls break. The better indicators are:
- Lower split-ball and scats generation
- More stable ball-size distribution
- Reduced unplanned stoppages related to discharge or handling issues
- Consistent mill throughput and product size
- Predictable wear rather than sudden fragmentation
- Lower total grinding-media cost per tonne milled
This broader approach matters because grinding media performs the actual grinding work after the liner transfers motion into the charge. Correct media sizing, quality, and charge composition are therefore fundamental to grinding efficiency and cost control.
This article is not an argument that cast steel balls should never be used. They can be highly effective when the operating environment matches their design strengths.
Cast steel balls may be considered when:
- The grinding duty is mainly abrasive rather than impact-dominant
- Ball diameters are smaller
- The mill is a secondary or fine-grinding stage
- The ore is abrasive but does not create severe high-drop impacts
- The cast alloy and heat treatment have been independently validated
- The supplier can demonstrate stable quality and low breakage in a comparable mill
For example, high-chromium cast media can be attractive in fine grinding and cement-related applications because wear resistance may be the dominant requirement. But a SAG mill with a tall lifter profile, coarse hard ore, and large-diameter media is a different duty. In that setting, an impact-resistant forged solution is usually the safer starting point.
The strongest grinding-media program starts with a manufacturer that asks the right technical questions. SHANDONG ALLSTAR GRINDING BALL CO., LTD. provides forged steel balls, cast steel balls, grinding rods, and grinding cylpebs for mining, cement, and power-generation applications, while supporting overseas OEM brands, wholesalers, and manufacturers.
Before recommending large SAG mill grinding balls, we focus on the operating realities that determine service life:
- Mill type, diameter, and power
- Lifter design and liner wear stage
- Ore hardness and abrasiveness
- Feed-size distribution
- Ball diameter and charge level
- Required surface and core hardness
- Historical splitting, spalling, and scats data
- Target cost per tonne of ore processed
If your SAG mill is experiencing large-diameter media splitting under aggressive lifter profiles, contact SHANDONG ALLSTAR GRINDING BALL CO., LTD. for an OEM grinding-media review. Share your ball size, mill specification, liner profile, and current failure samples, and our team can help define a forged-ball specification and validation plan built around your actual operating conditions.
SAG grinding balls can split because of a combination of high-impact operating conditions and media weaknesses. Common contributors include internal casting defects, brittle microstructures, excessive residual stress, poor heat-treatment control, severe ball-on-liner impact, oversized media, and overly aggressive lifter trajectories.
In high-impact SAG milling, forged steel balls are often the preferred option because they are typically designed for greater impact toughness and internal consistency. Cast steel balls can perform well in abrasion-dominant applications, but they require careful alloy and quality validation before use in severe large-diameter SAG duties.
Commercial SAG grinding media commonly falls in the approximate 94 mm to 160 mm range. The correct size depends on ore feed size, ore competency, mill diameter, charge level, mill speed, and desired grinding performance.
No. Higher hardness can improve abrasion resistance, but excessive hardness may reduce toughness and increase cracking risk in a high-impact environment. SAG media should be specified according to the best balance of wear resistance, toughness, and through-section hardness consistency.
Yes. Lifter profile controls charge motion and impact trajectory. If the profile produces excessive ball-on-liner contact or overly high-impact trajectories, it can increase media and liner damage. A liner review, supported by operational data or DEM analysis, can help improve charge motion.
Provide mill diameter, mill type, nominal ball size, ball-charge volume, mill speed, lifter configuration, ore hardness, ore abrasiveness, feed size, existing media specification, wear rate, split-ball frequency, photographs of failed balls, and the required delivery standard.
Measure the same operating indicators before and during the trial: media consumption, split-ball count, scats weight, throughput, mill power, product size, liner wear, downtime, and total cost per tonne milled. Keep key operating variables stable so the results are comparable.
1. Metso. "[Three Factors That Determine the Wear Life and Performance of Mill Liners]." Discusses SAG mill liner profiles, high lifter bars, impact energy, and the need for tough, impact-resistant materials in high-impact milling.
2. Metso. "[Correct Liner Selection, Optimal Mill Efficiency]." Explains how lifter profile, height, quantity, and liner design affect charge motion and grinding performance.
3. Metso. "[Five Tips on Mill Liners to Improve Grinding Profitability—Part 2]." Covers the relationship between charge motion, impact energy, liner wear, media wear, and grinding efficiency.
4. Molycop. "[SAG Balls]." Provides commercial context on SAG grinding-media size availability and controlled chemistry for SAG applications.
5. 911Metallurgist. "[Grinding Ball Design]." Reviews grinding-ball failure mechanisms, including material composition, heat treatment, residual stress, defects, and quality-control factors.
6. CEEC International. "[Review and Optimization of the Hudbay Constancia Comminution Circuit]." Provides operational discussion of aggressive lifter trajectories, ball-on-liner collisions, steel wear, and milling efficiency.
7. Metso. "[Five Tips on Mill Liners to Improve Grinding Profitability—Part 1]." Discusses the importance of media charge, media sizing, contact points, and media quality in mill performance.
