In a copper concentrator, grinding media selection is not simply a purchasing decision—it is a process-performance decision. The comparison between forged grinding media balls vs high chrome steel balls directly affects specific energy consumption, measured in kilowatt-hours per tonne (kWh/t), as well as media wear, mill availability, flotation performance, copper recovery, and total cost per tonne processed.
At SHANDONG ALLSTAR GRINDING BALL CO., LTD., we manufacture forged grinding balls, cast high chrome steel balls, grinding rods, and grinding cylpebs for global mining, cement, and power-generation customers. As an OEM partner for overseas brands, wholesalers, and industrial producers, we have learned that the "best" grinding ball is never defined by hardness alone. It is defined by how reliably the media supports a customer's ore type, mill duty, target grind size, slurry chemistry, and plant-wide energy objective.
For copper concentrators, the practical question is not merely, "Which ball lasts longer?" The more important question is:
Which grinding media delivers the lowest total kWh per tonne while maintaining target throughput, particle-size distribution, copper recovery, and cost efficiency?
This guide explains how forged grinding media balls and high chrome steel balls behave in copper grinding circuits, where each option performs best, and how concentrator teams can make a data-driven selection.
Comminution is one of the most energy-intensive stages in copper processing. Ore must be reduced from run-of-mine fragments through crushing, SAG milling, ball milling, classification, and flotation preparation. The electrical intensity of copper processing can vary substantially based on ore hardness, feed size, circuit configuration, liberation target, and concentrate requirements.
However, the mill power reading alone does not show the complete economic picture. Copper concentrators should also measure:
- kWh per tonne of ore processed
- Grinding media consumption in kg/t
- Throughput in tonnes per hour
- Product size distribution, including P80
- Cyclone overflow size stability
- Mill liner wear
- Ball charge level and size distribution
- Copper recovery and concentrate grade
- Flotation reagent demand
- Unplanned downtime and media-related operational disturbances
A media type that appears inexpensive per tonne purchased can become expensive if it produces excessive breakage, unstable milling, rapid size loss, poor grinding efficiency, or an unfavorable flotation environment.
Research on comminution systems has estimated that auxiliary equipment, grinding media, and related circuit components can add meaningful specific-energy demand beyond the direct mill motor load. One reported analysis found average additional specific power attributable to grinding media at approximately 3.4 kWh/t across studied comminution circuits. This illustrates why media consumption and media selection should be included in energy and sustainability calculations—not treated as a separate procurement category.

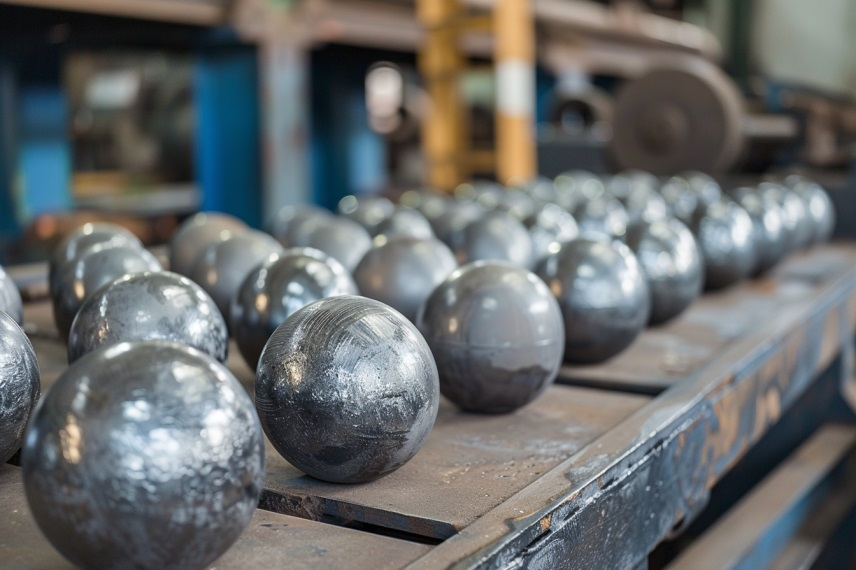

Forged grinding media balls are produced from alloy steel bar stock through controlled heating, forging or rolling, quenching, and tempering. When designed and heat treated correctly, forged balls provide a tough microstructure, high impact resistance, and resistance to catastrophic breakage.
At SHANDONG ALLSTAR GRINDING BALL CO., LTD., our forged grinding balls are engineered for demanding wet-grinding applications where large ball sizes, repeated impact, and variable ore hardness require reliable toughness.
Forged grinding media balls are often the preferred option when the circuit has:
- Large-diameter ball requirements
- High-impact grinding conditions
- Coarse feed entering a SAG mill or primary ball mill
- Hard, competent, or variable copper ore
- High ball-to-liner and ball-to-ball impact forces
- A need for a durable ball that retains structural integrity
- Mill conditions where broken media would disrupt operation
Forged steel is especially useful where impact dominates wear. In these applications, the ability to resist spalling, cracking, and breakage can be more valuable than maximum surface hardness.
Metso's mineral-processing guidance distinguishes forged or rolled martensitic steel media as suitable for high-impact duties, including SAG milling and wet ball milling. It also notes that high-chrome media typically has lower impact resistance and may be more difficult to manufacture in large diameters.
Forged balls can improve energy performance when they maintain an effective grinding charge. Their value is often linked to:
- Stable ball shape: Consistent geometry supports predictable charge motion.
- Impact durability: Lower breakage risk helps retain designed grinding energy.
- Large-ball suitability: Larger balls deliver the impact force needed for coarse particles.
- Controlled size distribution: Proper top-up programs preserve the mix of impact and abrasion energy in the mill.
- Reliable operation: Fewer damaged balls can reduce discharge problems, screen damage, and unplanned maintenance.
In a coarse copper grinding circuit, a tough forged ball may produce a lower practical kWh/t than a more wear-resistant but brittle alternative if the latter cannot tolerate the operating impact environment.
Forged grinding media is not automatically the lowest-cost solution in every copper application. Key limitations include:
- Higher wear in strongly abrasive, low-impact fine-grinding duties
- Lower corrosion resistance than high chrome media in some slurry environments
- Possible effects of iron corrosion products on flotation chemistry
- More frequent media additions in applications dominated by abrasion rather than impact
The correct decision depends on the ore and circuit. A forged ball that performs exceptionally in primary grinding may be less favorable in a fine regrind application.
High chrome steel balls are generally cast from high-chromium white iron alloys. Their hard carbide-rich structure gives them strong resistance to abrasive wear, making them a common option in lower-impact, high-abrasion grinding applications.
For copper concentrators, high chrome grinding media can offer benefits beyond wear life. It may also influence pulp electrochemistry, iron contamination, and downstream flotation behavior.
High chrome steel balls are most suitable when the operation has:
- Fine grinding or regrinding duty
- Relatively low impact and high abrasion
- A need for lower media consumption
- Stable mill conditions with controlled feed size
- A smaller ball-size requirement
- A flotation circuit sensitive to iron oxidation products
- A focus on minimizing media wear and maintaining grinding chemistry
High-chromium media is often selected where abrasion is the dominant wear mechanism. Metso notes that high- and medium-chrome media can offer the best cost-benefit relationship in relatively low-impact, high-abrasion conditions because of superior durability compared with forged steel balls. [metso]
The choice of grinding media can affect more than particle size. It can change the chemical conditions of the slurry before flotation.
A well-documented Northparkes concentrator study found that moving from forged steel to more electrochemically inert high chrome media created a more oxidizing pulp environment and reduced EDTA-extractable iron. The operation reported statistically significant improvements of approximately 1.0 percentage point in copper recovery and 1.3 percentage points in gold recovery, while final copper concentrate grade improved by at least 0.7 percentage point.
This does not mean high chrome balls will produce the same result in every copper operation. Mineralogy, water chemistry, pH, reagent suite, grinding time, liberation characteristics, pyrite content, and flotation configuration all matter. Still, the case demonstrates why a grinding media trial should include metallurgical metrics—not only wear rate.
High chrome steel balls also have operating constraints:
- Lower impact resistance than forged media
- Greater breakage risk in severe impact conditions
- Less suitability for large-diameter media applications
- Potentially higher initial purchase price
- Performance sensitivity to casting quality and internal soundness
- Need for rigorous quality control to reduce inclusions, porosity, and fracture risk
A high chrome ball should not be selected solely because it offers lower wear. If the ball is exposed to excessive impact, premature breakage can eliminate its wear-life advantage.
| Performance Factor | Forged Grinding Media Balls | High Chrome Steel Balls |
|---|---|---|
| Primary strength | Toughness and impact resistance | Abrasion and corrosion resistance |
| Typical manufacturing route | Forged or rolled alloy-steel bar | Cast high-chromium alloy |
| Best duty | High-impact primary grinding | Low-impact, high-abrasion fine grinding |
| Suitable ball diameter | Well suited to larger sizes | More practical in smaller and medium sizes |
| Wear behavior | Can wear faster in abrasive duty | Often lower wear in abrasive duty |
| Breakage resistance | Generally strong when correctly heat treated | Can be vulnerable under severe impact |
| Pulp chemistry influence | More electrochemically active | More chemically inert |
| Copper flotation potential | May increase iron-related chemical effects | May support more oxidizing pulp conditions |
| Initial purchasing cost | Often lower or moderate | Often higher |
| Total-cost potential | Strong in high-impact circuits | Strong in abrasion-dominated regrind circuits |
The most effective copper concentrator strategy may involve a hybrid media approach rather than an all-or-nothing choice.
For example:
- Use forged grinding balls in SAG milling or coarse primary ball milling.
- Use high chrome steel balls in secondary ball milling or fine regrind duty.
- Conduct plant trials to compare kWh/t, media kg/t, throughput, recovery, and concentrate grade.
- Select media based on total value per recovered tonne of copper—not unit price per tonne of balls.
Grinding balls do not directly "consume" electricity in the same way as a mill motor. Instead, they influence the efficiency with which mill power is converted into particle breakage.
A well-selected ball charge helps deliver the right combination of impact and abrasion. A poorly selected charge can waste energy through ineffective collisions, excessive cushioning, ball breakage, poor size distribution, or overgrinding.
1. Ball size and impact energy
Large balls transfer more impact energy and can break coarse particles. If balls are too small for the feed size, the mill may consume power without achieving sufficient breakage.
2. Ball charge size distribution
A balanced charge is essential. Large balls break coarse particles; smaller balls increase contact points and improve fine grinding. An unbalanced charge can raise kWh/t and reduce throughput.
3. Media wear profile
Fast-wearing balls change the grinding environment quickly. The mill may lose effective impact energy as large balls wear into smaller sizes.
4. Breakage and spalling
Broken balls create irregular media and can interfere with screens, pumps, cyclones, and mill discharge systems. This can reduce availability and increase total operating cost.
5. Slurry chemistry and flotation response
Grinding media affects iron oxidation, pulp potential, and mineral surfaces. In sulfide copper circuits, these changes may influence collector adsorption, pyrite depression, and copper recovery.
The most reliable way to choose between forged grinding media balls and high chrome steel balls is through a controlled trial. Laboratory wear tests are useful, but plant conditions are more complex.
Collect at least four to eight weeks of stable operating data before the trial:
- Mill power draw
- Throughput
- Feed and product P80
- Cyclone pressure and overflow density
- Ball consumption in kg/t
- Ball charge level
- Copper recovery
- Copper concentrate grade
- Reagent consumption
- Liner wear
- Mill downtime
Avoid comparing periods with major ore-source changes, maintenance shutdowns, flooding events, or major changes in grinding targets.
Choose the most important outcome before the trial begins. Examples include:
- Reduce specific grinding energy by 3–5%
- Reduce media consumption in kg/t
- Increase copper recovery
- Improve concentrate grade
- Stabilize cyclone overflow size
- Reduce media-related downtime
A trial without a defined objective can create data but not a decision.
During a media comparison, keep these conditions as stable as possible:
- Ore blend
- Feed size
- Mill speed
- Ball charge volume
- Water addition
- Cyclone operating pressure
- Target grind size
- Flotation reagent strategy
If several variables change at once, the result cannot reliably be attributed to the media.
Do not approve a media change after one short campaign. Validate performance across multiple ore types, especially if the concentrator processes both soft oxide-transition material and hard sulfide ore.
As a grinding media manufacturer, SHANDONG ALLSTAR recommends starting with the application, not the alloy name.
A procurement specification should include more than diameter and hardness. It should clearly define:
- Mill type and dimensions
- Feed F80 and target product P80
- Ore competency and abrasiveness
- Wet or dry grinding environment
- Maximum ball size requirement
- Expected impact severity
- Desired hardness profile
- Breakage-resistance expectations
- Chemical composition range
- Quality-control requirements
- Trial quantity and performance criteria
- Inspection, traceability, and shipment requirements
For OEM buyers, distributors, and industrial producers, consistent quality is essential. A grinding ball with inconsistent hardness, poor heat treatment, excessive casting defects, or uncontrolled chemistry can create performance variation that masks the real value of the selected media type.
Our technical approach is to support customers with product selection based on mill duty, ore conditions, wear mechanisms, and commercial targets. We can provide forged grinding balls, high chrome cast grinding balls, grinding rods, and grinding cylpebs to match different stages of the grinding circuit.
| Copper Grinding Stage | Typical Operating Challenge | Recommended Starting Point |
|---|---|---|
| SAG mill | High impact, coarse ore, large media | Forged grinding media balls |
| Primary ball mill | Mixed impact and abrasion | Forged balls or a trial-based blended approach |
| Secondary ball mill | Smaller feed, higher abrasion | High chrome steel balls or premium forged media |
| Fine regrind mill | Fine particles, abrasion, flotation sensitivity | High chrome steel balls, subject to metallurgical testing |
| Rod mill | Linear contact and coarse grinding | Grinding rods designed for straightness and wear consistency |
This table is a starting framework, not a substitute for site testing. A copper concentrator with unusually abrasive ore, high chloride water, variable hardness, or challenging flotation chemistry may require a different solution.
The debate over forged grinding media balls vs high chrome steel balls should not be reduced to "forged is cheaper" or "high chrome lasts longer." Both statements can be true in the wrong context—and incomplete in the real world.
Forged balls are often the strongest choice for high-impact grinding, large-diameter media, and primary milling conditions. High chrome balls can offer lower wear and potentially improved flotation conditions in lower-impact, abrasive, fine-grinding applications.
The winning strategy is to evaluate:
- kWh per tonne
- Media consumption
- Throughput
- Particle-size control
- Copper recovery
- Concentrate grade
- Downtime
- Total cost per tonne processed
SHANDONG ALLSTAR GRINDING BALL CO., LTD. helps global customers build this evaluation around the actual operating conditions of their copper concentrators. Whether you require OEM forged grinding balls, cast high chrome steel balls, grinding rods, or grinding cylpebs, our team can support media selection, trial planning, quality requirements, and long-term supply.
Contact SHANDONG ALLSTAR today to discuss your copper concentrator's mill type, ore characteristics, target P80, current media consumption, and kWh/t objective. We will help you select the grinding media solution that supports lower total operating cost and stronger metallurgical performance.
Neither is universally better. Forged balls are generally more suitable for high-impact applications such as SAG milling and coarse primary grinding. High chrome balls are often more effective in lower-impact, high-abrasion fine-grinding or regrind circuits.
They can, but only if their wear resistance, ball-size retention, grinding efficiency, and flotation effects improve overall circuit performance. A lower media wear rate does not automatically guarantee lower mill kWh/t. A controlled plant trial is required.
Grinding media can alter pulp chemistry, dissolved iron levels, oxidation-reduction potential, and mineral surface behavior before flotation. In certain sulfide copper circuits, high chrome media may create a more favorable pulp environment for copper recovery.
Monitor mill power, throughput, feed size, product P80, cyclone performance, media consumption, ball charge volume, ball breakage, copper recovery, concentrate grade, reagent use, liner wear, and downtime.
The ideal size depends on feed F80, mill diameter, ore competency, ball charge volume, target grind size, and grinding stage. Coarse primary grinding generally needs larger balls, while fine grinding typically benefits from a smaller media size distribution.
Yes. Many operations can benefit from using forged grinding media in high-impact primary grinding and high chrome balls in lower-impact secondary or regrind applications. Each stage should be evaluated independently.
A reliable OEM supplier should provide stable chemical composition, controlled heat treatment or casting quality, dimensional consistency, hardness verification, breakage-resistance testing, batch traceability, packaging flexibility, and technical support for plant trials.
