Nickel ore processing demands exceptional grinding efficiency – and steel grinding balls are the backbone of this critical operation. As grinding and crushing account for 30–50% of mining operating costs, choosing the right grinding media directly impacts your bottom line. At SHANDONG ALLSTAR GRINDING BALL CO., LTD., we've spent 35 years perfecting our craft as one of the world's largest manufacturers of grinding steel balls, serving global mining operations with forged grinding steel balls, high/medium/low chrome cast steel balls, grinding rods, and cast cylpebs. [beta.co]
In this comprehensive guide, I'll share industry-proven insights on the challenges of steel grinding balls for nickel ore processing, backed by real data and expert solutions that our clients have successfully implemented across Indonesia, Australia, Canada, and beyond.
Nickel laterite ores are incredibly abrasive, causing rapid degradation of grinding media. The data is stark:
| Cost Component | Percentage of Grinding Costs |
|---|---|
| Grinding Media | 37% beta.co |
| Liners | 13% beta.co |
| Energy | 50% beta.co |
Typical steel consumption in nickel mills ranges from 0.75–0.86 kg/t of ore. At a 2,000 tonnes/day operation, that's 1.5–1.7 tonnes of steel daily – a multi-million dollar annual expense. [beta.co]
The metallurgical dilemma is real:
- High-chrome balls (12–30% Cr) offer 10× lower wear rates than ordinary steel in dry grinding [beta.co]
- Forged high-carbon steel balls (1–3% C) are tougher but wear faster [beta.co]
- Some Ni-Cu sulfide circuits show higher flotation recoveries with forged steel vs. high-Cr balls [beta.co]
Incorrect ball size distribution leaves 3–5% kWh/t on the table. Too many oversize balls = coarse product. Too many small balls = extended grinding time and excessive abrasion. [beta.co]
Our Special High Chromium Alloy Casting Grinding Balls (ZQCr26) deliver industry-leading performance:
| Mechanical Property | Specification |
|---|---|
| Hardness (HRC) | ≥60 nhgrindingball |
| Impact Value | ≥4.0 J/cm² nhgrindingball |
| Microstructure | M+C (Martensite + Carbide) nhgrindingball |
| Falling Times | ≥20,000 nhgrindingball |
Why this matters: Our ZQCr26 balls withstand the abrasive conditions of nickel mining while maintaining high impact toughness – minimizing breakage and deformation for consistent particle size distribution. [nhgrindingball]
We offer chrome contents ranging from 1% to 32% with sizes from 4.8mm to 150mm. Different heat-treatment cycles impart specific metallurgical properties depending on your application: [nhgrindingball]
- Soft ores (Mohs 1-3): Lower chrome, smaller diameters [nhgrindingball]
- Abrasive nickel laterites: High-chrome (12–30% Cr) for maximum wear resistance [beta.co]
- Wet grinding circuits: Tough high-chrome alloy balls [beta.co]
Following Bond's approach and the square-root rule (D_top ≈ √F80), we recommend a graded charge – for example 80mm, 60mm, 40mm – to maximize contact points and efficiency. This optimization delivers 3–5% kWh/t improvement with proportional wear benefits. [beta.co]
Empirical data shows ~2% higher ball-media consumption for every 1% increase in mill speed. Many mills target 65–75% of critical speed (Nc) to achieve cataracting without centrifuging. [beta.co]
Actionable takeaway: A 5% speed reduction can trim media consumption by ~10%. [beta.co]
Targeting 70% solids instead of 60% often improves throughput and reduces ball-ball collisions. Many plants report 5–10% drop in specific energy (kWh/t) when optimizing density. [beta.co]
Recommended range: 65–75% solids by weight [beta.co]
In continuous ball-mill trials, low-molecular-weight polymer dosed at ~0.6 lb/ton raised throughput by 8–15% at constant product size. More tonnes per operating hour means fewer ball impacts per tonne – extending media life. [beta.co]
Industry reports suggest: 5–15% energy or time savings in wet grinding when additives are optimized [beta.co]
A client in Sulawesi, Indonesia (one of the world's largest nickel reserves, holding ~20% of world nickel reserves ) implemented our high-chrome grinding balls with the following results: [beta.co]
| Metric | Before | After | Improvement |
|---|---|---|---|
| Media Consumption | 0.86 kg/t | 0.75 kg/t | −15% beta.co |
| Liner Consumption | 0.095 kg/t | 0.090 kg/t | −6% beta.co |
| Total Steel | 0.955 kg/t | 0.840 kg/t | −13% beta.co |
Financial impact: A 500 t/day ball consumption operation saves roughly 75 t/day – a multi-million dollar swing at scale. [beta.co]
When operators implement our complete optimization program – high-quality media selection, balanced charge and speed, and effective chemical aids – they can plausibly double grinding media lifetime: [beta.co]
- Baseline wear: 1.0 kg/t → Reduced to ~0.5–0.7 kg/t [beta.co]
- Liner life extends 30–50% with material and geometry optimization [beta.co]
- Established: 1971 in Zhangqiu City, Shandong Province, China [allstarno1.86exporter]
- Production capacity: 50,000 tons/year with fully automated manufacturing [nhgrindingball]
- Certifications: ISO9001 quality system [nhgrindingball]
- Technology: Cutting-edge production plant with advanced automated rolling mills [nhgrindingball]
We produce all types of grinding media for mining, cement, and power industries:

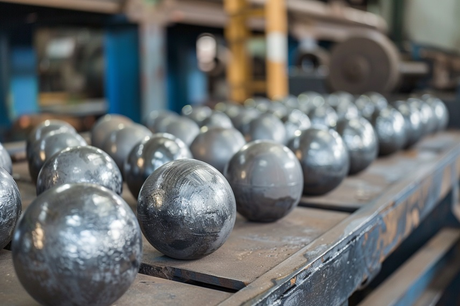

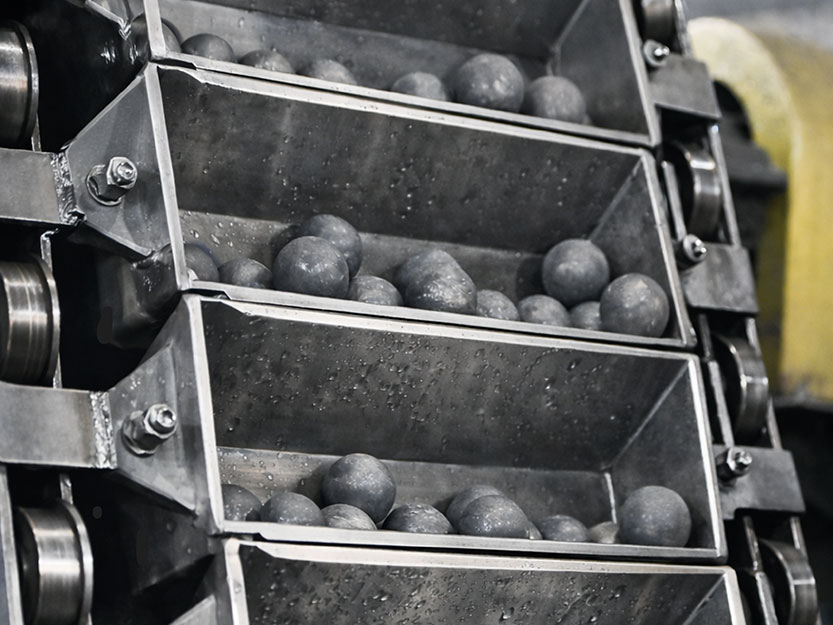

- Forged grinding steel balls – Tough, high-impact resistance
- High/medium/low chrome cast steel balls – Superior wear resistance
- Grinding rods – For rod mill applications
- Cast cylpebs – For regrind circuits with slower media wear
We provide OEM services for foreign brand owners, wholesalers, and manufacturers – customizing products to your exact specifications while maintaining our strict quality control standards [user input].
- Daily surface and core hardness testing for every batch [cn.hygrindingballs]
- 10-year experienced QC team overseeing production [cn.hygrindingballs]
- All records archived for traceability [cn.hygrindingballs]
- Strategic partnerships with major steel producers (China Steel, HBIS, Ansteel) [cn.hygrindingballs]
1. Assess ore hardness – Soft (Mohs 1-3), medium, or hard abrasive [nhgrindingball]
2. Determine grinding circuit type – SAG, ball mill, vertimill, or stirred mill [nhgrindingball]
3. Identify predominant wear mechanism – Abrasion, corrosion, or impact [nhgrindingball]
4. Choose chrome content – 1–32% based on abrasiveness [nhgrindingball]
5. Select size distribution – Graded charge (80/60/40mm) for optimal efficiency [beta.co]
6. Consider metallurgical impact – Flotation recovery vs. wear trade-off [beta.co]
A: High-chromium white cast iron (HCWCI) balls with 12–30% Cr deliver 10× lower wear rates than forged/cast steel in abrasive nickel laterites. [beta.co]
A: A comprehensive optimization program can reduce consumption from 1.0 kg/t to ~0.5–0.7 kg/t – effectively doubling media lifetime. [beta.co]
A: Target 65–75% of critical speed (Nc). A 5% speed reduction can cut media consumption by ~10%. [beta.co]
A: Yes – some Ni-Cu sulfide circuits show higher flotation recoveries with forged steel, though at higher wear rates. [beta.co]
A: A graded charge (e.g., 80mm, 60mm, 40mm) maximizes contact points and delivers 3–5% kWh/t improvement. Use D_top ≈ √F80 for top size selection. [beta.co]
Don't let inefficient grinding media drain your profits. At SHANDONG ALLSTAR GRINDING BALL CO., LTD., we combine 35 years of expertise, ISO9001-certified quality, and customizable solutions to maximize your nickel ore processing efficiency.
Contact us today:
- Phone: +86 531 8338 9098 [facebook]
- Email: allstar@steelgrindingball.com [facebook]
- Website: grindingball.com [facebook]
- Address: Taitou Industrial Park, Guanzhuang Town, Zhangqiu District, Jinan City, Shandong Province, China [facebook]
Request a free consultation with our grinding media specialists to optimize your circuit and reduce your media consumption by 15% or more.
