● Why material choice matters in acidic leaching
● Technical comparison — metallurgy and microstructure
● Performance indicators to evaluate
● When cast high‑chrome balls win
● When forged balls are preferable
● Practical selection framework
● Recommended product specifications and QA controls
● Operational practices to extend media life in acidic environments
● Case examples and customer feedback (synthesized from SHANDONG ALLSTAR experience)
● FAQs
For aggressive acidic leaching environments, cast high‑chrome grinding balls generally provide superior corrosion resistance and lower lifetime cost compared with standard forged steel balls, while forged balls remain preferable where extreme impact toughness and breakage resistance are the top priority. SHANDONG ALLSTAR GRINDING BALL CO., LTD. supplies both solutions and recommends selecting ball metallurgy and heat treatment specifically matched to the leach chemistry, mill duty, and operational goals to optimize total cost of ownership (TCO).
This article is written from the perspective of an industry expert and field engineer at SHANDONG ALLSTAR GRINDING BALL CO., LTD., integrating our product experience, customer feedback, and public industry findings. It focuses on the comparative performance of forged versus cast grinding balls in aggressive acidic leaching (e.g., acidified copper/gold heap leach or pressured acidic hydrometallurgical circuits) and offers practical selection, testing, and operational guidance. Keywords included in title, opening paragraph, and headings: Forged Grinding Ball vs Cast Grinding Ball for Aggressive Acidic Leaching Environments, forged grinding ball, cast grinding ball, acidic leaching, corrosion resistance, wear resistance.
- Acidic leach slurries accelerate corrosion-driven wear (corrosive wear) that reduces ball diameter, changes hardness distribution, and increases fragmentation risk. Material chemistry and microstructure determine corrosion resistance, carbide protection, and wear mechanisms.
- Operational consequences include reduced grinding efficiency, increased make‑up consumption, unexpected breakage, contamination of product, and higher energy and maintenance costs. Selecting the correct grinding media reduces downtime and TCO.
- Cast high‑chrome balls: typically 10–30% chromium with a cast microstructure containing hard primary carbides (M7C3 or similar) dispersed in a matrix. These carbides provide a hard abrasive shield that resists abrasive and corrosive wear in acidic slurries.

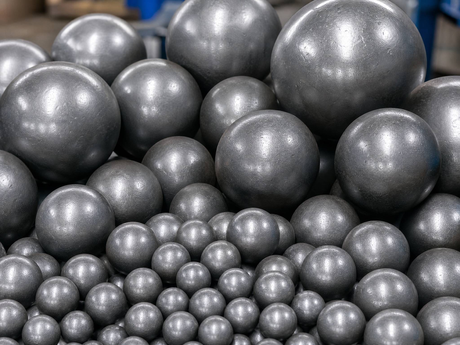

- Forged steel balls: typically low‑ to medium‑alloy carbon steel, forged then heat‑treated to achieve desired hardness and toughness; they rely on a homogeneous martensitic/pearlitic matrix without the ultra‑hard primary carbides. Forged balls therefore offer higher impact toughness but less intrinsic carbide-based wear protection.
- Practical implication: In acidic, highly abrasive slurries, the carbide-rich cast balls slow diameter loss and sacrificial wear; in heavy impact or SAG duties, forged balls better resist shattering.
- Corrosion rate (mm/year) in the actual leach chemistry, ideally measured by coupon tests in plant slurry.
- Wear rate (g/ton ore or mm/ton ore) measured during routine media surveys.
- Breakage frequency (%) and fragment size distribution from mill inspections.
- Hardness profile (surface to core) and microstructural uniformity measured in lab QA.
- TCO metrics: upfront price/ton, make‑up consumption/yr, downtime cost, energy impact.
SHANDONG ALLSTAR's production QA focuses on uniform hardness, controlled microstructure, and low breakage rates to optimize these indicators.
- Fine grinding stages in acidic hydrometallurgical circuits where abrasion + corrosion dominate.
- Ball mills in gold and copper plants using acidic leachants or sulfuric‑acid conditioned slurries.
- When the objective is maximizing service life and minimizing media consumption even if initial purchase cost is higher.
Example industry outcome: plants switching to high‑chrome cast media in acidic circuits often report 1.5–3× life increase versus forged steel under similar conditions, improving TCO despite higher unit price.
- Coarse grinding or primary SAG/AG mills subject to heavy impact where media shattering creates operational risk.
- Applications where toughness (resistance to brittle fracture) is non‑negotiable, e.g., large feed rocks, frequent pebble drop events, or when operational constraints make cast ball breakage unacceptable.
- Where site prefers simple heat‑treated carbon/low‑alloy metallurgy due to supply, handling, or recycling preferences.
1. Define mill duty and leach chemistry: measure pH, redox potential, chloride and sulfate levels, temperature, and slurry solids.
2. Conduct laboratory immersion and slurry coupon tests for candidate media alloys to measure corrosion rate and abrasive wear.
3. Run pilot media trials (2–4 weeks) in the actual mill or pilot mill, monitoring wear, breakage, grinding efficiency, and contamination.
4. Evaluate TCO: include media cost/ton, annual make‑up, downtime, energy, and any metallurgical penalties or benefits.
5. Select media and specify hardness profile, size distribution, and QA acceptance criteria; document handling and storage to avoid corrosion pre‑use.
- For acidic leaching: high‑chrome cast balls with controlled chromium level (often 10–25% depending on ore and cost), narrow hardness range (e.g., 58–66 HRC depending on size), and verified carbide distribution.
- For forged balls intended for mixed duties: specify required toughness (Charpy or fracture toughness proxy), surface hardness, and controlled decarburization limits.
- QA tests to require from supplier: chemical analysis certified, hardness mapping (surface-to-core), impact/bend test results, microstructure photos, and breakage rate history from production lots.
SHANDONG ALLSTAR applies automated production and strict QC to deliver uniform hardness and low breakage for both forged and cast lines.
- Maintain slurry chemistry control: avoid unnecessary low pH excursions if possible; neutralize spikes where feasible.
- Optimize mill charge and size distribution: reduce over‑grinding and minimize impact events that fragment cast media.
- Implement regular media surveys and quick replacement of damaged balls to avoid cascade fragmentation.
- Consider surface treatments or coatings (selective use) if compatible with leach chemistry and metallurgical targets.
These practical measures work synergistically with selecting the right media to maximize life and efficiency.
- Customer A (copper flotation/acidified leach circuit): after switching from forged low‑alloy balls to cast high‑chrome, reported 2× media life and reduced media make‑up, improving grinding uptime and reducing contamination in downstream leach.
- Customer B (secondary ball mill with heavy pebble drop): retained forged balls for impact resilience; used smaller proportion of cast balls in later stages to balance wear and toughness.
- Typical customer praise emphasizes consistent hardness, low breakage, and reliable OEM support for size and packaging options.
Contact SHANDONG ALLSTAR GRINDING BALL CO., LTD. for a free slurry‑matched media trial and TCO analysis tailored to your leach chemistry and mill duty. Our technical team will design a 2–4 week pilot, run lab validation, and deliver a written recommendation.
1) Q: Are cast high‑chrome balls immune to acid corrosion?
A: No—while cast high‑chrome greatly reduces corrosive wear compared with plain forged steel, they still corrode under extreme chemistries; selection should be slurry‑matched and validated by testing.
2) Q: Can I blend forged and cast balls in one mill?
A: Yes — blends are common to balance toughness and wear; however, blending requires monitoring to avoid accelerated wear of one type and to maintain mill balance.
3) Q: How long should a pilot trial run?
A: A 2–4 week pilot in the actual mill is typical to produce reliable wear and breakage data for decision making.
4) Q: What QA reports should I request from suppliers?
A: Request chemical certificates, hardness maps, microstructure photos, breakage statistics, and impact test results.
5) Q: Does higher chrome always mean better performance?
A: Not always—excessive chrome without proper microstructure control can produce brittleness; metallurgy balance and QA are essential.
